Product Details:
Payment & Shipping Terms:
|
| Model: | ET-S1200 | Printing Area: | 1200×250 Mm |
|---|---|---|---|
| Plate Area: | 1250×300 Mm | Stencil Frame Size: | 470×370 Mm～1300×550 Mm (L×W) |
| Pitioning Way: | Positioning Pin | PosScraper Speed: | 0-100mm/sec |
| High Light: | Positioning Pin PCB Board Printing Machine,100mm/Sec PCB Board Printing Machine,120W Automatic Pcb Printing Machine |
||

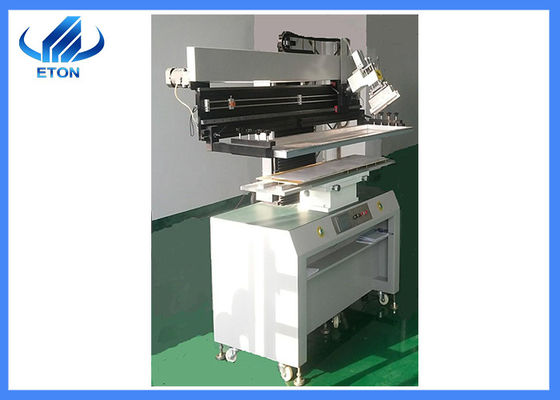

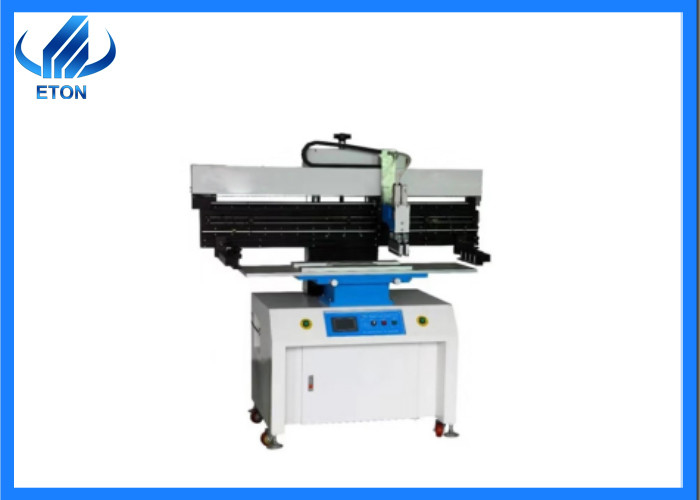

High-quality low-cost and efficient semi-automatic PCB board printing machine
Product description
It is suitable for the printing of soft and hard circuit printing and the liquid photosensitive solder resist green paint printing of multilayer circuit boards, and can be used for printing fine circuits, etc. Can be customized for different structures and processes, low production cost, strong applicability.
Features
| The governor motor drive scraper, combining precision linear guide, ensure the printing precision |
| Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement |
| The scraper holder can adjust forward and backward, to select the suitable printing position |
| Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing |
| Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick |
| Can be set unidirectional and bidirectional multiple printing methods |
Specifications
| Model | ET-S1200 |
| Printing area | 1200×250 mm |
| Plate Area | 1250×300 mm |
| Stencil Frame Size | 470×370 mm～1300×550 mm (L×W) |
| Positioning way | positioning pin |
| Scraper Speed | 0-100 mm/sec |
| Power | 220V single phase, 50/60 HZ |
| Power Consumption | 120W |
| PCB plate thickness | 0.2-2.0 mm |
| Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision | +/- 0.05 mm |
| Air supply | 5-7 KGF/cm2 |
| Weight | 360 kg |
| Dimension | (L)1600 x(W)900 x(H)1650 mm |
Company information
Certificate
FAQ
1,How many cameras does the machine have?
There are two sets of imported cameras. Using exclusive patent technology: vision for the flight identification, Mark correction.
2,What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3. What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor, Y axis and Z axis is servo motor, very good performance and high accuracy.
