| Electric Control Box: | 1 Set | Dimension: | L1400*W860*H1200±30mm |
|---|---|---|---|
| Transmission Motor: | Taiwan 15W Fixed Speed Motor | Direction: | Right To Left / Left To Right |
| Transmission Height: | 920±30mm | Structure: | Pneumatic Clamp Structure |
| High Light: | SMT Pick And Place Conveyor,PCB Pick And Place Conveyor,Pneumatic Clamp SMT Loading Machine |
||

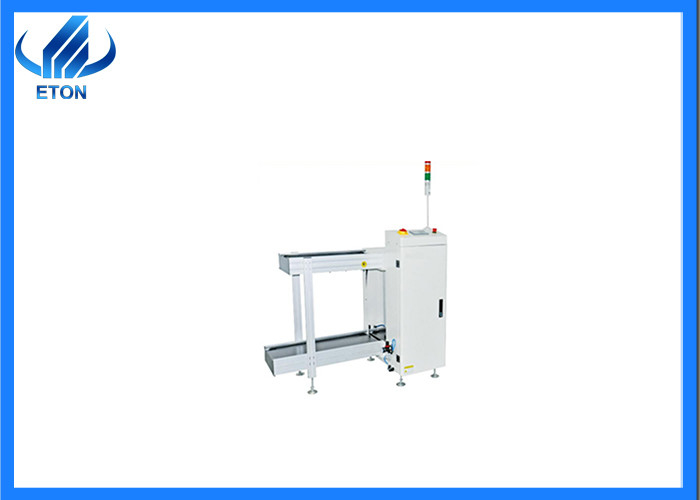

Low cost SMT PCB pick and place conveyor machine loading machine
Structure
The automatic loading machine is composed of frame, lifting system, pushing system, deviation adjustment system, roller, positioning frame, control system, etc.
Features
Technical parameter
| Item | ET-L330 send board machine |
| Dimension | L1400*W860*H1200±30mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor | Taiwan 15W fixed speed motor |
| Structure | Pneumatic clamp structure |
| Magazine Specifications | L460*W400*565mm |
| Maximum size of PCB | L450*W330 |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Effect
The SMT loading machine is a kind of production equipment that needs to be used in the SMT production and processing of electronic products. Its main function is to place the un-mounted PCB board in the SMT loading machine and automatically send the board to the suction machine, and then suck the board. The machine automatically places the PCB on the track of the solder paste printer and uploads it to the solder paste printer for solder paste operation.
Company information
Shenzhen ETON Automation Equipment Co., Ltd. was established in Shenzhen, China in October 2011. It is a national high-tech enterprise and dual-soft enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. In 2020, ETON Jiangxi Industrial Park covering an area of 50,000 square meters will be completed, equipped with advanced processing and manufacturing workshops, covering 45,000 square meters. The quality control of the machine is more stringent, and the process flow is standardized.
Certificate
Partner
Delivery
FAQ
What is the direction of transmission of machines?
The transmission direction of this machine is both direction
Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
What is the delivery date?
We will deliver the goods after 30 days' deposit.
Are you a manufacturer or trading company?
manufacturer. We have our own industrial park.
