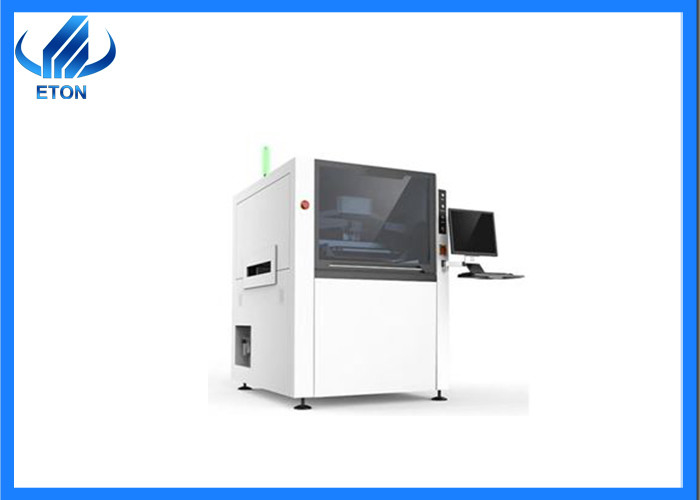

PCB LED Patch SMT Stencil Printing Machine High Precision

PCB LED Patch SMT Stencil Printing Machine High Precision
PCB LED Patch SMT Stencil Printing Machine High Precision

Large Image :  PCB LED Patch SMT Stencil Printing Machine High Precision

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-F400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Screen Frames Min Size: 370X370mm Screen Frames Max Size: 737X737mm
PCB Thickness: 0.4~6mm Transport Height: 900±40mm
Squeegee Speed: 6~200mm/sec Print Head: Two Independent Motorized Print Heads
High Light:

PCB SMT Stencil Printing Machine

,

LED Patch SMT Stencil Printing Machine

,

High Precision Chip Mounting Machine

Cheap price high precision PCB LED patch stencil printing machine



Features



  1. Can be used for automatic production line connection, without manual placement and printing
  2. The positioning and operation of the steel mesh is convenient, and the movable steel mesh frame can use different sizes of steel mesh.
  3. The floating scraper can dynamically balance the pressure of the left and right scrapers to extend the life of the scraper and the steel mesh and ensure reliable printing.
  4. The operation is simple, stable, reliable and convenient.
  5. Advanced fault diagnosis system, such as faults can be displayed through the man-machine interface, which is convenient for the operator to quickly troubleshoot.
  6. Magnetic Pin/Up-down table adjusted/support block by hand
  7. There are two independent electric print heads with side clamping and vacuum nozzle system



Technical parameter



Model

Item

 ET-F400
Screen Frames Min Size 370X370mm
Screen Frames Max Size 737X737mm
Screen Frames Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 400X340mm
PCB Thickness 0.4~6mm
PCB War page ＜1%
Transport Height 900±40mm
Transport Direction Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location PCB Support System Magnetic Pin/Up-down table adjusted/support block
by hand
Clamping System side clamping, vacuum nozzle
Print head Two independent motorized print heads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg











Company information



Shenzhen ETON Automation Equipment Co., Ltd. was established in Shenzhen, China in October 2011. It is a national high-tech enterprise and dual-soft enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. In 2020, ETON Jiangxi Industrial Park covering an area of 50,000 square meters will be completed, equipped with advanced processing and manufacturing workshops, covering 45,000 square meters. The quality control of the machine is more stringent, and the process flow is standardized.



PCB LED Patch SMT Stencil Printing Machine High Precision 0



Certificate



PCB LED Patch SMT Stencil Printing Machine High Precision 1



PCB LED Patch SMT Stencil Printing Machine High Precision 2



Partner



PCB LED Patch SMT Stencil Printing Machine High Precision 3



Product



PCB LED Patch SMT Stencil Printing Machine High Precision 4



PCB LED Patch SMT Stencil Printing Machine High Precision 5



FAQ



1,How many cameras does the machine have?

There are two sets of imported cameras. Using exclusive patent technology: vision for the flight identification, Mark correction.

2,What is the direction of transmission of machines?

The transmission direction of this machine is both direction.

3. What kind of driving mode does the XYZ axis adopt?

X axis is magnetic liner motor, Y axis and Z axis is servo motor, very good performance and high accuracy.

4. What is the mounting mode?

Group to picking and separate to placing, Separate to picking and separate to placing.

5.Is your software interface in English?

English interface and Chinese interface are both available.
