| Name: | Smt Machine/mounter/pick And Place Machine/led Lighting Machine | Modle: | HT-T9 |
|---|---|---|---|
| Dimension: | 3100*2300*1550 Mm | Weight: | 1700 Kg |
| Mounting Speed: | 200000-250000 Chip Per Hour | Mounting Heads: | 68 Pcs |
| High Light: | Roll To Roll SMT Mounting Machine,IP45 SMT Mounting Machine,IP45 smt mounter machine |
||
Roll To Roll SMT Mounting Machine For RGB IP45 50m Strip Lamp
Roll to roll SMT mounter machine for 50m strip lamp with RGB and IP45
The classification of waterproof classification
1. The LED light bar is IP65 waterproof: usually also called the surface epoxy waterproof light bar, currently it is made of epoxy resin and PU glue. Put the LED light bar flat on the glue table, fix the LED light bar with double-sided adhesive on the back, and then put a layer of glue on the surface of the LED light bar to play the role of waterproofing the surface.
2. LED light bar IP66 waterproof: usually also called hollow full-tube waterproof light bar, generally used sleeves are silicone full-tube and PVC full-tube.
3. LED light bar IP67 waterproof: usually also called semi-sleeve drip water-proof or semi-sleeve potting waterproof, that is, the bottom part is covered with a semi-sleeve, and then do the drip or potting treatment. Glue filling and waterproofing will affect the heat dissipation of the light bar, and long-term use will cause the sealant to fall off.
4. LED light bar IP68 waterproof: It is usually called a full set of tube filling water proof or a full set of tube pumping water proof, which is the highest waterproof level of the current LED light bar, and can be used completely in water.
ETON Mounter machine apply to all kinds of waterproof led strip light/strip lamp for 220v/24v/120v/36 etc.
SMT Mounter machine description

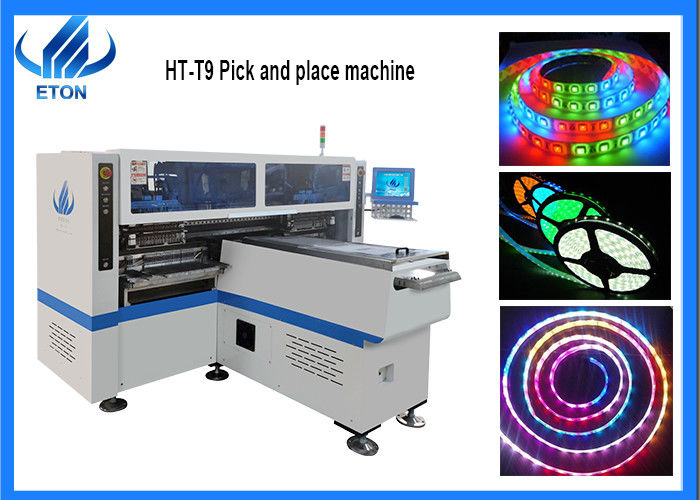

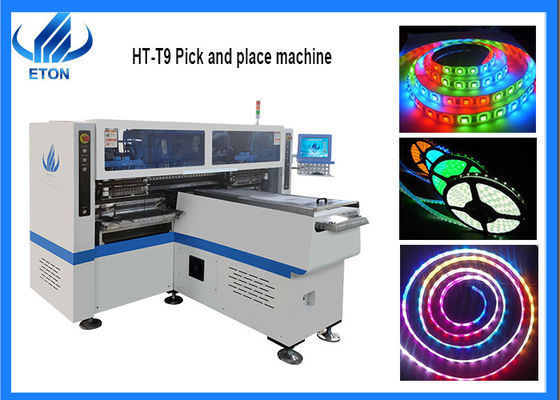

HT-T9 is one module of ETON mounter machine. It is professional design for roll to roll strip light, the function is pick led/resistor and mount on the Flexible strip. The most big features of this module is support high voltage roll to roll strip light with waterproof. Besides, it also support for mounting RGB(Red/Green/Blue color) ,bridge , etc.
SMT Mounter machine parameter
| Model: | HT-T9 | Dimension: | 3100*2300*1550 mm | |
| PCB Length Width: | 250 mm * any length | PCB Clamping: | Vacuum adjustable, cylinder splint, adjustable track width | |
| Mounting speed: | 200000-250000 chip per hour | Components: | SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc | |
| No. of Feeder station: | 68 PCS | No. of Nozzles: | 68 PCS |
SMT Mounter machine features
Super high speed mounter: There are 68 PCS Nozzles and feeders with machine, support group mounting and picking. If there are 34 columns on the PCB, 68 PCS could mounting two rows at the same time.
Calibration automatically, high precision, available for RGB.
Widely application in strip lamp, like 5m/10m/15m/25m/50m/100m any length of strip light with high capacity.
