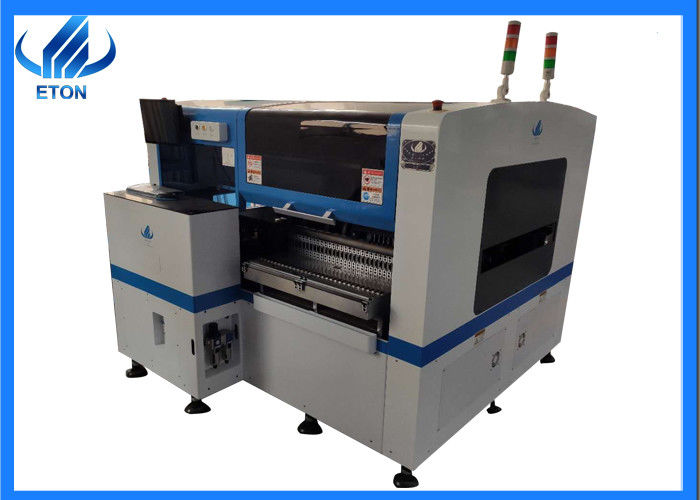

Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver

large.img.alt
small.img.alt

Large Image :  Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Model Number: HT-E5D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB USD 76000~86000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine Warranty: 1 Year
PCB Length Width: Max 500*300mm Min 100*100mm Power: 380 AC 50 HZ
Power Consumption: 8KW Dimension: 1650*2000*1550 Mm
Software: R&D Independently Total Weight: 2800kg
High Light:

Smd 0402 Bulb Led Making Machine

,

Power Driver Led Making Machine

,

led bulb making machine

Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver



LED Light high speed smd 0402 bulb led making machine for power driver



reference configuration of led making machine
The pick and place machine Control system: industrial computer to Ensure the stability of machine operation, precision motion control card and touch screen monitor The operation is more convenient and intelligent.


Software system of E5D pick and place machine: Chinese and English operating system R&D independently by ETON.and the XYZ axis Driver way is magnetic linear motor and servo motor to ensure the high stability.Mounting nozzle: independently developed several types of nozzles.Sliding device: precision screw rod and linear guide rail.Visual device: MARK point recognition;Feeding way:Electric feeder with double motor.



Details of led making machine

full-automatic dual module multi-functional pick and place machine,to produce two different products at same time.

It adopts the method of Group to picking and separate to placing,Separate to picking and separate to placing.Each head can be controlled independently, and Flexible mounting of various components.

4 sets of imported cameras, synchronously recognize, effectively ensure mounting speed and precision.vision for the flight identification,mark correction.



Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver 0



HT-E5D
PCB PCB length width Max:500*300mm min:100*100mm
PCB thickness 0.5~3mm
PCB clamping Electric clamping + Adjustable pressure pneumatic
Mounting mode

ØGroup to picking and separate to placing

ØSeparate to picking and separate to placing

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

2sets of imported camera

Vision for the alignment identification,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <36mm
Mounting speed 80000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 8KW
Conveyor transmission Max length:500mm
Transmission speed >500mm/sec
Transmission direction Both direction
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way High-end magnetic linear machine + Servo motor control for X,Y,Z axis
Feeding way
Feeding system No.of feeders station Duel mode.totally 60
No.of nozzles Dual mode.totally 16
Feeding way Electric feeder with double motor



A whole production line
Surface Mounted Technology is the most popular Technology and process in the electronic assembly industry.Surface assembly technology is a circuit assembly technology that directly sticks and welds surface assembly components to specified positions on the printed circuit board surface without drilling plug-in holes on the printed circuit board.



Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
stencil printer:Operate the stencil printer to print the solder paste onto the PCB
reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
Conveyor:Check whether the PCBA is misaligned or shift.

Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver 1


Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver 2





Partners&project cases



Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver 3



Our Services
Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Eton Purpose: To create value for customers, creating benefits for society.
Eton Mission: Professional,Excellent technology,Share the results.
Eton goal: To create a national brand,build international Chinese enterprise.
Eton purpose: To create value for customers,creating benefits for society.
