Product Details:
Payment & Shipping Terms:
|
| Length* Width* Height: | 1650mm*2000mm*1550mm | Total Weight: | 2800kg |
|---|---|---|---|
| PCB Size: | Max:500*300mm Min:100*100mm | Mounting Speed: | 80000CPH |
| No. Of Nozzles: | 16PCS Double Module | No. Of Feeders Station: | 60PCS Double Module |
| High Light: | 500mm SMT Mounting Machine,80000CPH SMT Mounting Machine,80000CPH Pick And Place Machine |
||

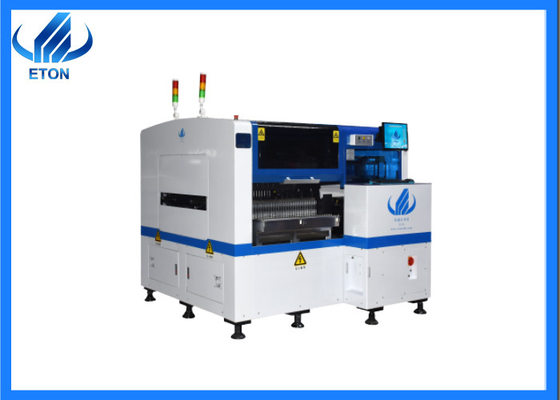

500mm SMT Mounting Machine LED Driver Pick And Place Machine
HT-E5D introduction
Technical parameter
| HT-E5D pick and place machine | |
| Length* Width* Height | 1650mm*2000mm*1550mm |
| Total weight | 2800kg |
| PCB Size | Max:500*300mm Min:100*100mm |
| Mounting speed | 80000CPH |
| Components | LED, capacitors, resistors, IC, shaped components, etc. |
| No. of nozzles | 16PCS double module |
| No. of feeders station | 60PCS double module |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| Feeding way | Electric feeder with double motor |
Features
| 1 | The dual-system, dual-module multi-function placement machine can produce two different products at the same time. |

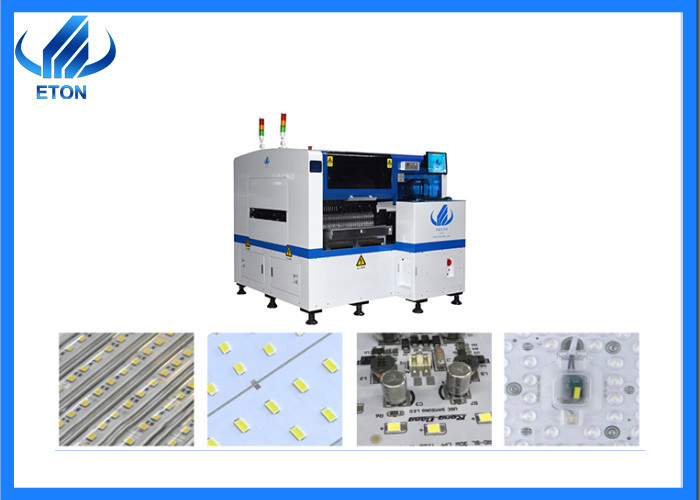

| 2 | Mounting parts: lamp beads, capacitors, resistors, ICs, special-shaped components, etc. |
| 3 | The smallest mountable 0402, the highest mountable 36 mm |
Use
Used in the electronic product manufacturing industry, such as: circuit boards, street lamps, display frequency, household appliances, industrial and mining lamps, etc.
SMT production equipment
Solder paste printer: The solder paste is printed on the PCB pads through the stencil of the printer.
Mounting machine: Mount the lamp beads or other components on the designated position on the PCB.
Conveyor: testing the placement and soldering quality.
Reflow soldering: melt the solder paste to make it adhere to the mounting components.
Service
FAQ
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible. Our mode of transportation including water, land and air transportation. You can choose the most suitable way according to your requirements.
4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction .From left to right or from right to left.
