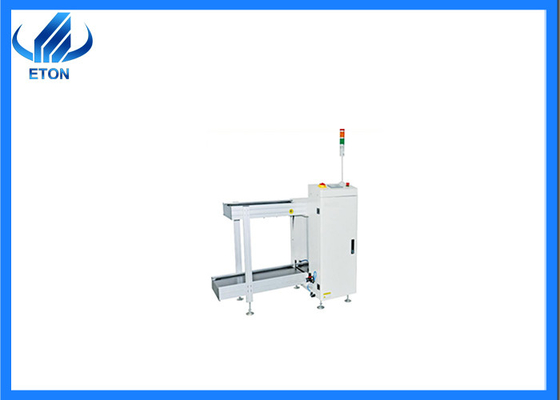

PLC Controlled SMT Mounting Machine Automatic Board Loading Machine
Introduction
Composition: The automatic loading machine is composed of frame, lifting system, pushing system, deviation adjustment system, roller, positioning frame, control system, etc.
Technical parameter
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6s |
| Frame change time | Around 25s |
| PCB thickness | 0.4～3.0mm |
| Step pitches selection | 1～4(10mm step pitches) |
| Transmission height | 900+20mm |
| Transmission direction | Left-right, right-left |
| Power consumption | Single-phase AC 110～220V(optional), maximum 300VA |
| Air pressure and air flow | 4～6Bar, Up to 1 L/min |
Specifications parameter
| Model | LD250 | LD330 | LD390 | LD460 |
| PCB size(L*M)mm | 80*50～330*250 | 80*50～460*330 | 80*50～510*390 | 80*50～510*460 |
| Dimension (L*W*H)mm | 1455*800*1200 | 1755*950*1200 | 2000*1010*1200 | 2000*1100*1200 |
| Size of turnover frame(mm) | 355*320*565 | 460*400*565 | 535*460*570 | 535*530*570 |
| Approximate weight(Kg) | About 140 | About 160 | About 220 | About 240 |
Features
The device of loading PCB in the SMT production line;
PLC control, color man-machine interface operation;
Adopt a special cylinder push plate structure, and the force and speed of the push plate can be adjusted;
Auxiliary positioning brake system, accurate positioning, fast lifting speed, high production efficiency;
Multiple electrical power distribution loop protection, safe and reliable;
Sound and light prompt alarm system, text prompt for abnormal information, easy operation and maintenance;
Standard SMEMA signal communication method
Application
Loader Is used for the board loading operation of the circuit board in the production line.
Company information
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. The company has always been committed to providing customers with "professional, efficient, and low-consumption" SMT automatic placement machines.
Services
FAQ
What is the direction of transmission of machines?
The transmission direction of this machine is both direction
Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
What is the delivery date?
We will delivery the goods after 30 days' deposit.
Are you a manufacturer or trading company?
manufacturer. We have our own industrial park.
What is your payment terms?
30% deposit in advance and 70% balance before shipment.
What can you do for me?
SMT Machines and Solution, professional Technical Support and Service.
