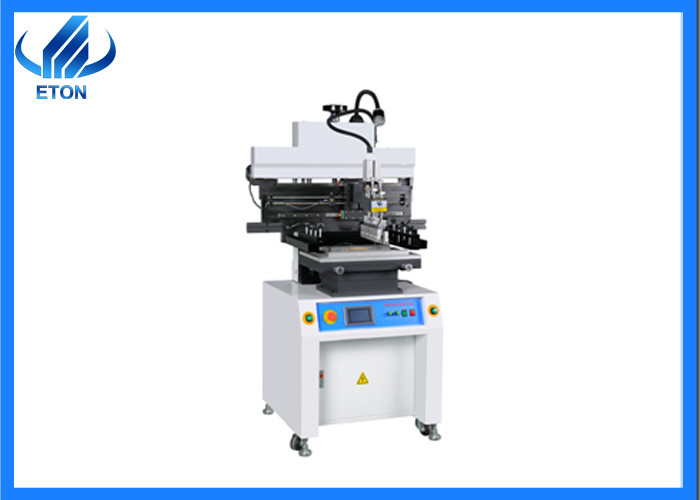

PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine

PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine
PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine

Large Image :  PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-S300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Dimensions: ET-S300 Platform Size: 470-750 Mm
Template Size: 300×400mm Control: PLC&Touch Screen
Usage: PCB Name: Semi Automatic Stencil Printer
High Light:

Touch Screen Semi Automatic Stencil Printer

,

PLC Semi Automatic Stencil Printer

,

PLC PCB stencil printer

PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine


High quality semi-automatic PCB solder paste stencil printing machine for smt machine

Introduction

It is suitable for soft and hard circuit printing and multilayer circuit board printing, and can also be used for printing fine circuits. The production cost is low and the applicability is strong.

Technial parameter



Model ET-S300
Dimensions 900*900*1650mm
Platform size 470-750 mm
Template size: 300×400mm
Power Consumption 100 w
Power 220v50/60hz
Control PLC& Touch screen
Air press 4-6 kg/㎡
Repeatability precision ±0.02mm
Positioning mode Outside/Reference hole
Weight Approx.150Kg














PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine 0
Features



Adopt linear guide rail to match the motor drive speed to ensure the stability and accuracy of printing.
Squeegee pressure and printing speed are adjustable, precision pressure gauge, speed controller display.
Suspended scraper system makes printing more uniform.
Modular universal workbench, thimble is placed randomly, easy to change.
With PCB board and frame alignment device.


Application

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation.

Company information

PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine 1
PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine 2
PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine 3

Precautions before starting

1. The printer head is located at the sensor position on the left;
2. There is no foreign matter on the printing platform;
3. The overall level of the equipment has been confirmed.

After-sales service

1. The product is guaranteed for one year and provides technical support.
2. Provide technical guidance to customers on how to use the machine.
3. Provide the supply of maintenance parts and be responsible for maintenance services.
4. Provide the latest industry development trends, company, product trends and other news.

FAQ

1,How many cameras does the machine have?
There are two sets of imported cameras. Using exclusive patent technology: vision for the flight identification, Mark correction.
2,What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3. What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor, Y axis and Z axis is servo motor, very good performance and high accuracy.

PLC Touch Screen Semi Automatic Stencil Printer For Smt Machine 4
