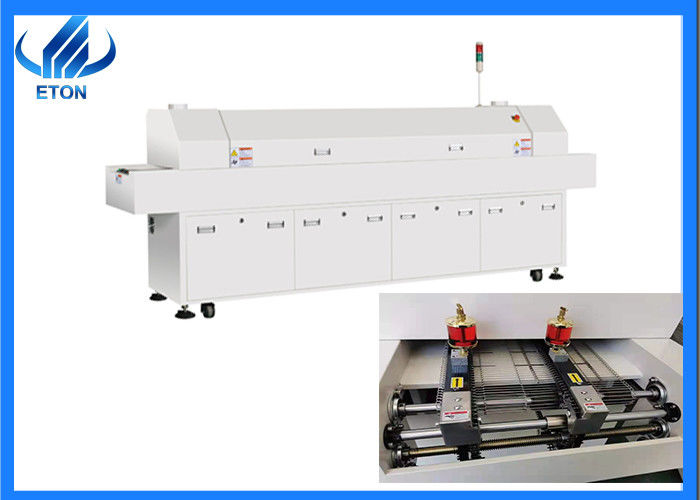

Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment

Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment
Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment

Large Image :  Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-R8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detailed Product Description
Machine Name: Reflow Oven Machine/ Soldering Machine/ Smt Machine Machine Zones: 8 Zones
Machine Dimension: L5000*1300*1450 Mm Net Weight: 1500 Kg
Initial Power: 68 KW Operating Power: 16 KW
High Light:

Eight Zones Reflow Oven Machine

,

8 Zones Reflow Oven Machine

,

Eight Zones smt reflow machine

Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment



Eight zones reflow oven machine smt automatic soldering in smt line



Reflow oven machine features

1. This module is eight zones soldering oven, big capacity than 6 ovens, very suitable for big factory .

2. The mesh width of oven machine is 350mm, support different sizes PCB products.

3. Machine is high quality with unique advanced heating system with long life

4. Reliable and smooth transmission system, symmetrical double groove guide rail, high temperature resistance, no deformation, small heat absorption. Standard chain, network chain synchronous iso-speed parallel transportation, dual rail transportation system or central support system is optional.



Reflow oven machine parameters

Machine name Reflow Oven machine/ smt machine/ Soldering machine
No. of heating temperature zones The top 8 small cycle heating area, the bottom 8 small cycle heating area
Heating mode Plane winding type heating on both sides of the generator, pressurized air duct, point to point frequency conversion motor heat exchange, frequency conversion motor drive
Length of heating zone 2800 mm
Number of cooling zone 2+1 ( natural air cooling system )
Length of cooling zone 1100 mm
Transmission belt width 500 mm
PCB Size 50-350 mm
Dimension L5000*1300*1450 MM
Net weight 1500 kg



Machine application

SMT Line is included many different machines, such as the pick and place machine, stencil printer machine, conveyor, loader, Un-loader, Reflow oven machine, etc.

Reflow oven machine is widely applied to electrical products and led lighting industry, cause it is function is heating the solder paste to connect the pcb and components again , so where need using pcb and components, where is using this machine.

Eight Zones Reflow Oven Machine Smt Automatic Soldering Equipment 0



FAQ

1. I don’t have smt line before, what kind of machine we need to buy ? And which kind of raw material need ?

A: Dear Client, for smt line, main machine included pick and place machine, stencil printer, reflow oven and conveyor machine. Different product will have different line design , so if you want to know more about the line of your product, please contact us by fellow contact and also we will share the list of raw material required in this line.



2. Do you provide video check for mounting test ?

A: Yes, we are the R&D manufacturer of SMT machine, we could support the machine test before shipping, it is no problem.
