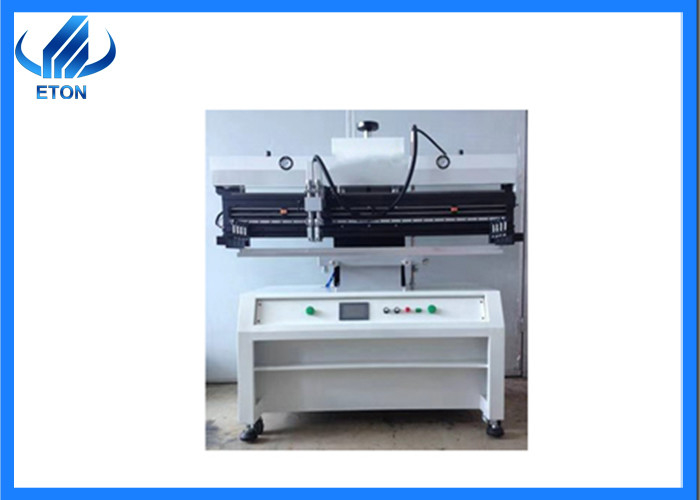

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush
1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush

Large Image :  1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-S1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Printing Area:: 1500×250 Mm Plate Area:: 1550×300 Mm
Stencil Frame Size: 470×370 Mm~1300×550 Mm (L×W) Plate Trimming:: Front/back +/- 10mm Right/Left +/- 10mm
Weight:: 420 Kg Dimension:: (L)1600 X(W)900 X(H)1650 Mm
High Light:

1.5m PCB Board Smt Printing Machine

,

SIRA Smt Printing Machine

,

1.5m PCB Board smt printer machine

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush



Automatic printer Can brush 1.5m PCB board smt printing machine



Product Introduction



It is suitable for the printing of soft and hard circuit printing and the liquid photosensitive solder resist green paint printing of multi-layer circuit boards, and can be used for printing fine circuits, etc. Can be customized for different structures and processes, low production cost, strong applicability.



Specification



Model ET-S1500
Printing area: 1500×250 mm
Plate Area: 1550×300 mm
Stencil Frame Size: 470×370 mm~1300×550 mm (L×W)
Positioning way: positioning pin
Scraper Speed: 0-100 mm/sec
Power: 220V single phase, 50/60 HZ
Power Consumption: 120 W
PCB plate thickness: 0.2-2.0 mm
Plate Trimming: Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision: +/- 0.05 mm
Air supply: 5-7 KGF/cm2
Weight: 420 kg
Dimension: (L)1600 x(W)900 x(H)1650 mm




Features



(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;

(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;

(3) the scraper holder can adjust forward and backward, to select the suitable printing position;

(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;

(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.

(6) can be set unidirectional and bidirectional multiple printing methods.

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush 0

Scope of use



Suitable for solder paste printing of surface mount components in SMT surface mount technology.



1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush 1



Exhibition



In order to promote the company’s products efficiently, increase visibility, recognize and understand related industry knowledge, and obtain certain customer resources, our company will participate in a large number of domestic and foreign exhibitions every year, such as Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Delhi Exhibition in India, and Turkey Exhibition. , Pakistan Exhibition, Egypt exhibition, Thailand exhibition, etc.

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush 2

1.5m PCB Board Smt Printing Machine Automatic Printer Can Brush 3

FAQ



Q: What is the direction of transmission of machines?

The transmission direction of this machine is both direction

Q: Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q: What is the delivery date?

We will delivery the goods after 30 days' deposit.

Q: Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.

Q: What is your payment terms?

30% deposit in advance and 70% balance before shipment.

Q: What can you do for me?

SMT Machines and Solution, professional Technical Support and Service.
