Product Details:
Payment & Shipping Terms:
|
| Name: | PCB Conveyor | Net Weight: | 70~110 Kgs |
|---|---|---|---|
| PCB Size: | 1400*300 Mm | Transport Height: | 900±20mm |
| Transport Direction: | Left-Right; Right-Left; | Rail Length: | 1400mm |
| Motor: | One Set Of 40 W Stepper Motor | ||
| High Light: | 1400mm PCB Smt Conveyor,1200mm PCB Smt Conveyor,pcb inspection conveyor |
||

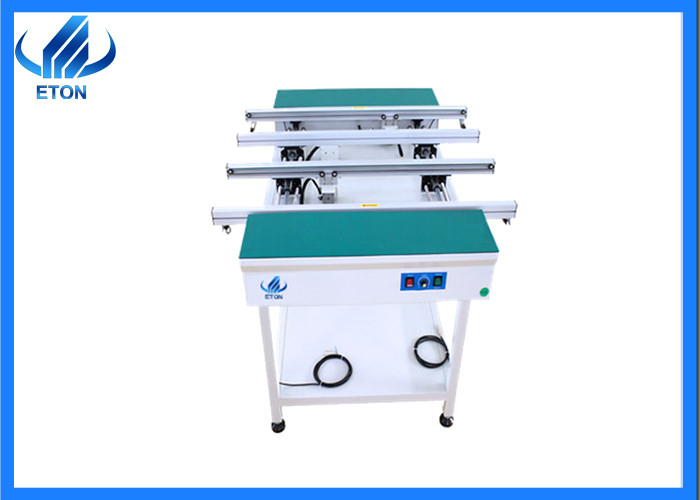

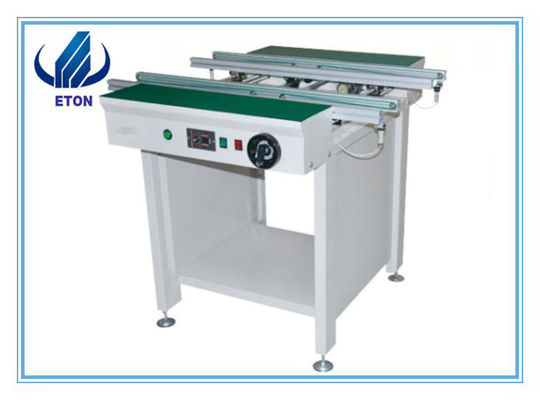

1200m 1400mm PCB Smt Conveyor In Led Light Production Line
1200m 1400mm PCB conveyor Smt Machine in led light production line
SMT PCB conveyor can link the pcb magazine loader unloader for smt assembly, this PCB conveyor are mainly used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which allows them to be placed anywhere when you have space limitations.
Product Features of PCB conveyor
High quality pcb conveyor belt for longest lifetime, easy to replace.
* linking conveyor length could be customized to 1 meter, 1.5meter,2.0 meters etc.
* Steel frame, static painted surface,smoothest and stablest operation
* Smooth and parallel width adjustment(lead screw)
* With Omron sensor and high precision
* SMT PCB conveyor speed is adjustable and can be customized to double section and dual lane for the multi-type SMT production line.
* cirular special belt and special conveyor track, can solve the PCB board problem with the 1mm distance from the side to component. To avoid the PCB board get stuck and improve efficiency of connection .
* Inspection and by pass mode selectable
* Standard signal of industry for equipments; SMEMA can connect with others automatically on line.
Specification of pcb conveyor
| Model | ET-DC1400 |
| Steel frame structure, rail length | L=1400 |
| Max PCB size | 1400*300 mm |
| Width adjustment range | 50～300 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left → right or right → left) |
| One section of control, 4 Sensors | |
| Set of electric control box | |
SMT line layout
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
FAQ
1. Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3. What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5. Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
