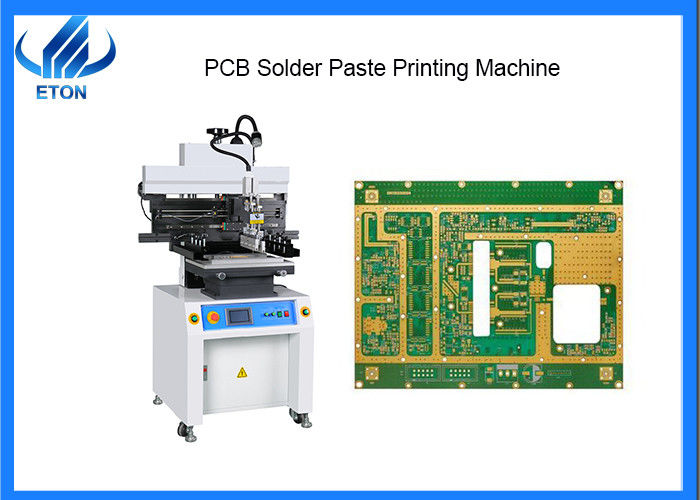

9000 Mm/Min Semi Automatic Stencil Printer For PCB Board

large.img.alt
large.img.alt

Large Image :  9000 Mm/Min Semi Automatic Stencil Printer For PCB Board

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-S400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Supply Ability: 50 sets per month
Detailed Product Description
Machine Name: Semiautomatic Stencil Printer Machine Machine Function: Print Solder Paste On The Pcb
Max Pcb Sizes: 400*300 Mm Max Stencil Frame Size: 550*650 Mm
Repeatability: ±0.02 Mm Printing Cycle: 5-20 S
High Light:

9000 Mm/Min Semi Automatic Stencil Printer

,

PCB Board Semi Automatic Stencil Printer

,

9000 Mm/Min solder paste printer machine

9000 Mm/Min Semi Automatic Stencil Printer For PCB Board



Semiautomatic stencil printer machine for PCB



Application

Semiautomatic stencil printer machine widely apply to all kinds of electrical industry, such as the led bulb factory, panel light factory, tube light factory, ceiling light factory etc.



Function

For semiautomatic stencil printer machine, the function is print the solder paste on the pcb through the stencil. It is not the automatically, need the human operate, but the cost is cheaper than the automatic stencil printer machine.



Main parameter of stencil printer machine

Model ET-S400
Dimension L670*W850*H1650 mm
Platform Size 320*500 mm
PCB Size 400*300 mm
Max Stencil Frame Size 550*650 mm
Printing speed 0-9000 mm/min; Adjustable
Fixed printing position Positioning pin
Printing accuracy ±0.05 mm
Repeatability ±0.02 mm
Minimum component spacing 0.3 mm
Printing cycle 5-20S



Operating procedures

1. Preparation before printing: Solder paste, PCB, stencil printer machine

2. Fixed adjustment PCB board with the knob

3. Put the solder paste on the stencil

4. Press the print button

5. Machine print the solder paste on the PCB automatically

9000 Mm/Min Semi Automatic Stencil Printer For PCB Board 0

Machine maintenance

In the use of the printing plant, the printing press is undoubtedly a machine with a high frequency of use, and maintenance at this time is very important. The maintenance methods are mainly divided into static maintenance and dynamic maintenance. During static maintenance, what we have to do is to maintain the parts and replace the oil. In dynamic maintenance, we need to observe the operating conditions of the printing press, what is the lubrication effect during mechanical operation, and feel the impact effect of the printing press during operation. These are all worth doing in the maintenance.
