| Name: | PCB Conveyor | Net Weight: | 70~110 Kgs |
|---|---|---|---|
| PCB Size: | 1400*300 Mm | Transport Direction: | Left-Right; Right-Left; |
| Rail Length: | 1400mm | Transport Height: | 900±20mm |
| Motor: | One Set Of 40 W Stepper Motor | ||
| High Light: | Automatic PCB Conveyor,1400mm PCB Conveyor,Automatic smt conveyor |
||

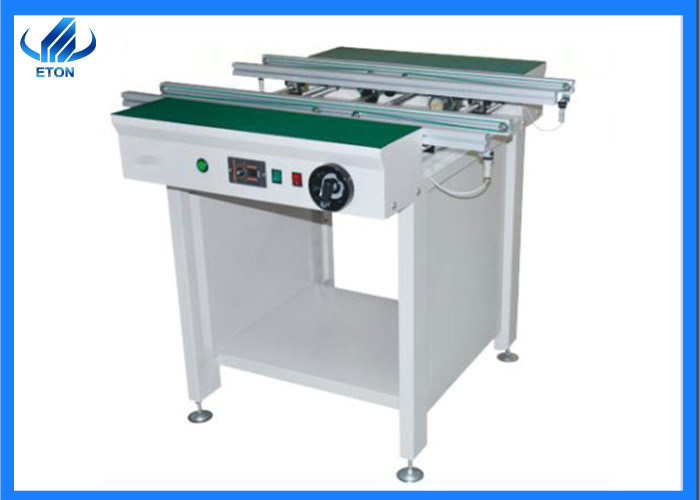

bulb production line PCB machine automatic PCB conveyor in SMT production line
PCB conveyor machine generally include: frame, two parallel rotation in rack transmission belt, circuit board placed on two transmission belt conveyor, the existing transmission belt usually fixed on the rack position, make the width of the two transmission belt conveyor circuit board is restricted, which is bad for the circuit boards of different sizes for conveying, so as to make the connection to the applicability of the low.
Dtails of PCB conveyor
1. The use of industrial microcomputer control, can achieve the communication with the automatic mounter and automatic screen printing machine;
2. Anti-static inspection table;
3. Special SMT belt transmission with adjustable transmission speed;
4. Customers can customize products with special length and functions.
5. This product is suitable for connection between SMT and AI production lines, as well as PCB buffering, testing, etc.
Specification of pcb conveyor
| Model | ET-C1500 |
| Steel frame structure, rail length | L=1500 mm |
| Max PCB | 1500*350 mm |
| Width adjustment range | 50～350 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left →right or right →left) |
| One section of control, two Sensors | |
SMT line layout
SMT basic process:
stencil screen--mounting part--reflow soldering--testing--rework
stencil screen: Its function is to leak the solder paste onto the PCB pads to prepare for the soldering of components. The equipment used is a stencil printing machine, located at the forefront of the SMT production line.
Mounting: Its function is to accurately mount the surface components to the fixed position of the PCB. The equipment used is a placement machine, located behind the stencil printing machine in the production line.
Reflow soldering: Its function is to melt the solder paste, so that the surface assembly components and the PCB board are firmly bonded together. The equipment used is reflow soldering and is located behind the placement machine.
Inspection: Its function is to inspect the welding quality and assembly quality of the assembled PCB board.
Rework: Its function is to rework the PCBA that has been detected to be faulty. The tools used are soldering iron, rework station, etc. Configured at any position in the production line.
