1000mm 1200mm 1500mm PCB Conveyor Machine In Smt Production Line

1000mm 1200mm 1500mm PCB Conveyor Machine In Smt Production Line
1000mm 1200mm 1500mm PCB Conveyor Machine In Smt Production Line

Large Image :  1000mm 1200mm 1500mm PCB Conveyor Machine In Smt Production Line

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-C500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Detailed Product Description
Machine Name: Pcb Conveyor/smt Machine Suitable For: 1500 Mm Max Pcb Size
Apply To: Smt Line Function: Using For Different Machine Connect
Sizes: 500mm/600mm/1000mm/1200mm/1500mm Warranty: 1 Year
High Light:

1500mm PCB Conveyor Machine

,

1200mm PCB Conveyor Machine

,

1200mm smt conveyor

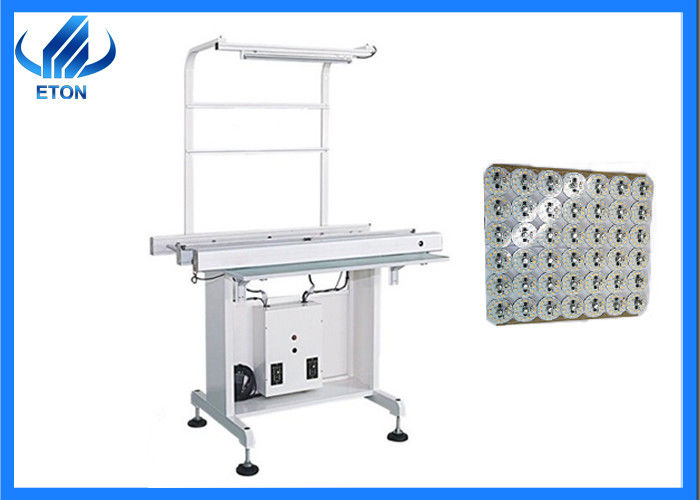

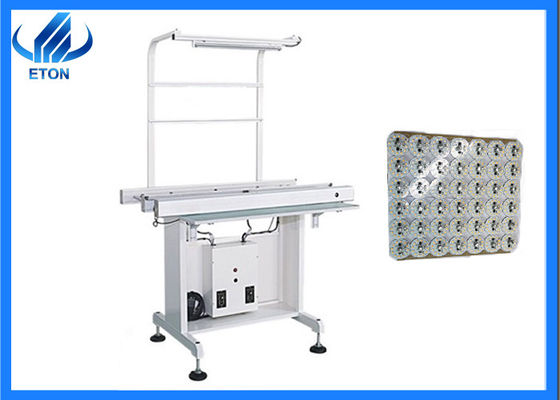

1000mm 1200mm 1500mm PCB Conveyor Machine In Smt Production Line



Conveyor machine main parameters



Model: ET-C1500

Steel frame structure, rail length: 1500 mm

Width adjustment rang: 50-350 mm

Transmission height: 920±20 mm

Transmission: 5MM flat belt conveyor

Speed: Adjustable from 0.5 to 9 m/min

Control :Industrial control panel

One section of control, two sensors



Conveyor function



Conveyor is the small machine in smt line, it is simple but pay a important role for the line. Different smt machines will connect by conveyor and transport pcb from different machines. Such as between stencil printer and pick and place machine, there are one conveyor, and after pick and place machine and reflow oven, also will have conveyor machine for connect. It is very important and save the labor cost just after using this conveyor



Conveyor classification



SMT Pcb conveyor according to the length have different sizes, the normal size of the pcb conveyor in the market are:

500 mm conveyor

600 mm conveyor

1200mm conveyor

1500mm conveyor

Besides length , also have some conveyor are classification according to the number of rails. Such as :

Double rail 500 mm conveyor

Double rail 600 mm conveyor

Double rail 1200 mm conveyor

Client choose the right conveyor according to the max pcb sizes and smt line design, if you are not very clear about how to choose, welcome contact us for more details.



Service



Cause conveyor is a very simple module, engineer all know how to using, even not, we also support online support and share the installation video, etc.

And this machine is one year warranty. The core part is free repaired and replaced during warranty.
