Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Stencil Printer | Dimension: | 1754(L)X1249(W)X1600(H)mm |
|---|---|---|---|
| Software: | R&D Independently | Warranty: | 1 Year |
| Weight: | 600Kg | Condition: | New |
| Power Supply: | AC220V 50Hz | Cleaning System: | Automatic Cleaning |
| Printing Accuracy: | ±0.025mm | ||
| High Light: | Automatic Stencil Printer Machine,PCB Automatic Stencil Printer,50Hz PCB Stencil Printer Machine |
||

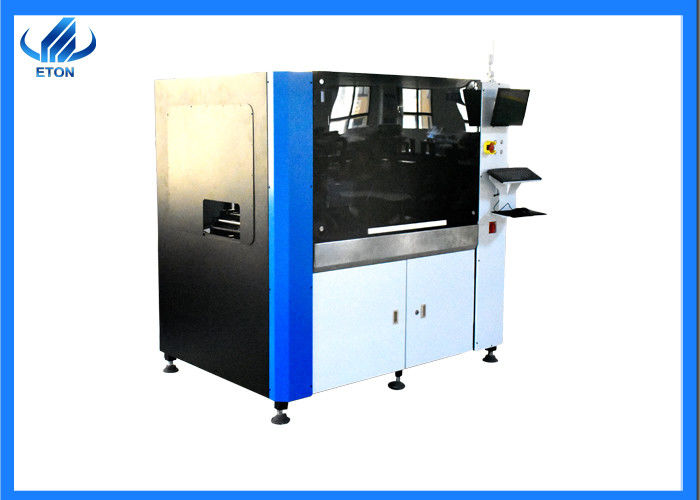

AC220V 50Hz PCB Automatic Stencil Printer Machine For 100m Roll To Roll
Description of stencil printer
The main function of SMT stencil printer machine: used in SMT production process of solder paste coating on PCB;The solder paste coating method of the SMT stencil printer is to print the solder paste through the template to the Welding plate of the PCB in order to mount the SMD components to the pcb.
SMT stencil printer machine is not replaced by other equipment, is the main equipment in the SMT production process.
SMT production process is the solder paste coating, component mounting, reflow welding, it is the first major process in the SMT production process.In order to get good printing quality, SMT presses should have good printing process in addition to good equipment.
SMT stencil printer machine Configuration
● Programmable suspension printing head;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Automatic stencil printer of Technical Parameter
|
Model Item |
ET-AL260 | |
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| FPCB transport over plate height | 20mm | |
Spare parts of Full automatic stencil printer
After Services
Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
24 hours online service and technical support, solve your questions quickly!
Sound company organization and working system, guarantee you a fast delivery!
Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
RFQ
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
Q: What we can do for you?
A: We provide SMT machine,we can aslo provide Production line scheme and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of deposit.
Q: What is your payment terms?
A: 30% deposit and 70% balance before shipment.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
