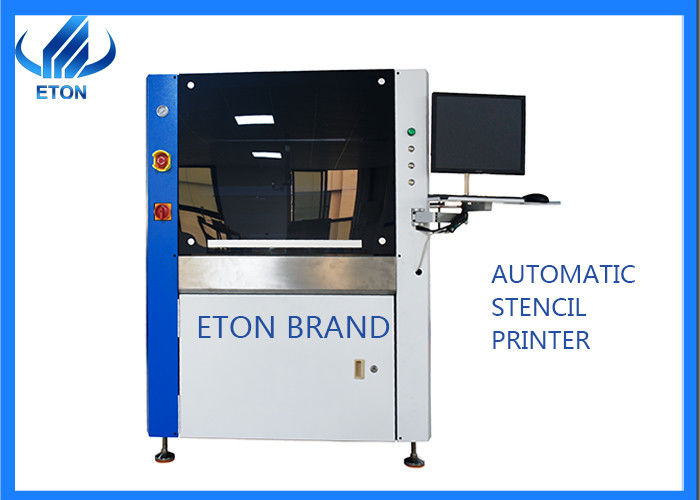

PC Control PCB Solder Paste Printer Two Independent Motorized Print Heads

Stencil Printer Machine main features

• Programmable floating print head to ensure that the pressure of the front and rear squeegee is individually adjustable to ensure the inconsistency of the front and back printing caused by the fatigue deformation of the squeegee colored paper. The unique print head design can control the printing stroke in a limited way, improve the printing efficiency, and prevent the solder paste. Vent.
• The scraper is made of standard stainless steel, and its unique design can effectively increase the life of the blade.
• The camera uses a servo motor for visual correction, and there is a reflective prism inside the camera, which can flexibly control the light source according to the specific orientation to maximize the printing accuracy of the printer
• Automatic stencil cleaning system, supports three cleaning methods: dry, wet and vacuum
• ETON exclusive patented software research and development, humanized design, simple operation and strong versatility
• Multi-purpose printing function, which can be applied to solder paste printing and red glue printing materials, suitable for a variety of SMT process requirements
• The maximum printed PCB size can reach 400*340 mm, which is generally applicable to common PCB sizes in the market
• 200mm/250mm/300mm/350mm, etc., support various types of lengths of scraper options, and also support special customization
• Intelligent calibration system, the XYZ axis of the printing machine will automatically perform PCB calibration according to the displacement data generated by the software

Automatic Stencil Printer Machine main parameter

Machine main part

Whole machine (Dimension L*W*H: 1100*800*1400 mm)

Machine application

Automatic stencil printer machine widely apply to different electrical product, high precision product, like the driver board, etc.

SMT Line solution

In SMT Line, there are automatic stencil printer machine, pick and place machine, reflow oven machine, loader and un-loader machine. Different SMT line design will be little different. Some factory will using one automatic stencil printer machine for different SMT line. ETON will provide the professional suggestion for the line design.

ETON Brand

ETON got more than 14 years R&D experience in SMT industry equipped with core technology

ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.

ETON R&D Global first automatic stencil printer machine for roll to roll 100 m led strip light

ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world

Service

1. Before order:

We will recommend the best module according to the products

We will supply best quotation with factory price

2. After order:

Machine will have good test and aging before shipping

We support machine free installation and training, special time we support online training, and video teaching.

We have Professional after-sales team, could solve problem as soon as possible

Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.

Machine package

ETON machine using Vacuum wooden box packaging:

Firstly, Wrap the machine with film

Secondly, Sponge the machine

Thirdly, Use a vacuum bag to compress the air in the machine and encapsulate the machine

Fourthly, Fix the foot cup of the machine with wooden stakes

Fifth, fix the machine again with a rope

Finally, encapsulate the machine in a wooden box
