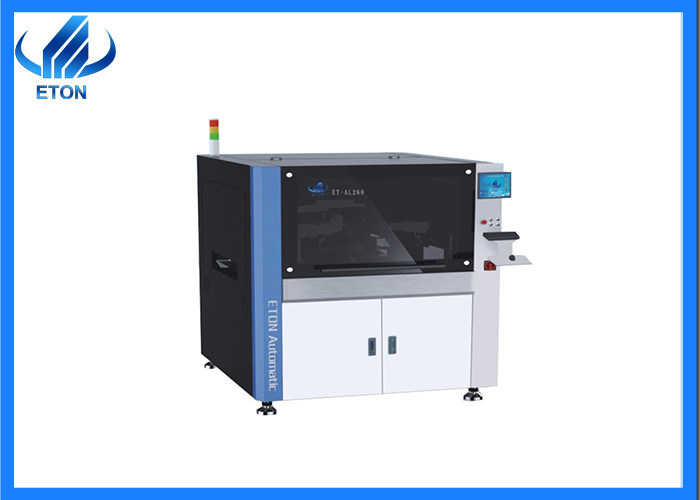

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire
CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire

Large Image :  CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-AL260
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Item: Full-auto Stencil Printer For No-wire Dimension: 1754*1249*1600mm
FPAB MAX Size: 260mm FPAB Min Si: 50mm
Clamping System: Edge Clamping Fixed Printed Head: Two Independent Motorized Print Heads
High Light:

Strip Light Stencil Printing Machine

,

SIRA Stencil Printing Machine

,

SIRA stencil printer machine

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire

For any length flexible strip printing China first no-wire strip light stencil printing machine

Introduction

Placed in front of the SMT production line placement machine, it is mainly used to print the solder paste on the FPCB board. It is suitable for 25/50/100M wireless printing. The PCB soft board is supported by the platform's lifting and tensioning method. For its fixation, it is fixed by side clamps by the cylinders on both sides.

Technical parameter


Screen frames max size 850mm
Screen frames min size 550mm
Screen frames thickness 25-45mm
FPCB max size 50mm
FPCB min size 260mm
FPCB thickness 0.5-5mm
Squeegee speed 6-300mm/sec
Cleaning system Manual cleaning
Printing accuracy ±0.025mm
Cycle time ≤9s (Exclude Printing & Cleaning)
FPCB transport over plate height 20mm


Features

It is the latest technology in the world and can be used for printing with 100 meters without wires. Continuous printed flexible circuit board;
The high-precision bidirectional camera is adopted, it can be irradiated up to the steel mesh down to the FPCB board, and the servo motors used in the X and Y axis of the camera adopt the Inovance/Panasonic brand;
Two sets of independent stepping motor drives, so that the front and back pressure of the squeegee can be adjusted separately, so as to ensure that the front and back printing does not cause inconsistency due to the deformation of the squeegee material;
The software is independently researched and developed by our company and has exclusive characteristics. It can automatically set the track width to ensure the consistency of the position.

Scope of application

It has the characteristics of continuous printing and is suitable for factories that specialize in small-scale or large-scale production of long flexible light strips (the length of FPCB board can be 100 meters)

Details of machine

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 0
CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 1

Company information
CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 2

Certificate

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 3

Packing and delivery

CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 4
CCC SIRA 260mm Strip Light Stencil Printing Machine For No Wire 5

FAQ

Since it is a fully automatic printing machine, how do you add solder paste and change the stencil?
You still have to manually add solder paste and change the stencil. Fully automatic does not refer to this aspect, but after you set the program (such as: the length and width of the track, the angle of the scraper, etc.), the printing machine can automatically perform Printing, without manual loading and unloading etc.
When we need to change the line, what aspects of the machine need to be adjusted and how long will it take?
Only need to adjust the PCB board and stencil to change the line, usually can be completed within five minutes.
Which method is used to clean the stencil and how long is the printing cycle?
Through manual cleaning, the printing cycle is about 9 seconds (including printing and cleaning).
