Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Stencil Printer | Power Supply: | AC220V 50Hz |
|---|---|---|---|
| Dimension: | 1754(L)X1249(W)X1600(H)mm | Software: | R&D Independently |
| Weight: | 600Kg | Condition: | New |
| Cleaning System: | Automatic Cleaning | Warranty: | 1 Year |
| Printing Accuracy: | ±0.025mm | ||
| High Light: | FPCB Automatic Stencil Printer,Smt Automatic Stencil Printer,Smt solder paste printing machine |
||

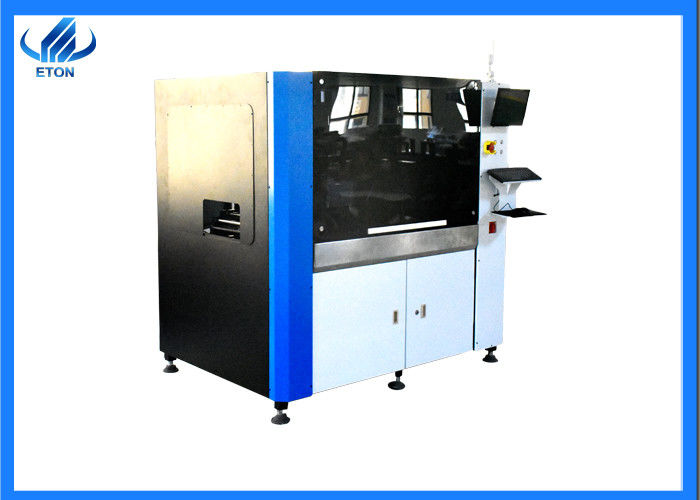

Smt FPCB Automatic Stencil Printer With Automatic Cleaning Solder Paste Printer
FPCB full automatic stencil printer smt line with automatic cleaning solder paste printer
Description of solder paste printer
The main function of SMT stencil printer machine: used in SMT production process of solder paste coating on PCB;The solder paste coating method of the SMT stencil printer is to print the solder paste through the template to the Welding plate of the PCB in order to mount the SMD components to the pcb.
SMT stencil printer machine is not replaced by other equipment, is the main equipment in the SMT production process.
SMT production process is the solder paste coating, component mounting, reflow welding, it is the first major process in the SMT production process.In order to get good printing quality, SMT presses should have good printing process in addition to good equipment.
Automatic solder paste printer of Technical Parameter
|
Model Item |
ET-AL260 | |
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| FPCB transport over plate height | 20mm | |
RFQ
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
Q: What we can do for you?
A: We provide SMT machine,we can aslo provide Production line scheme and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of deposit.
Q: What is your payment terms?
A: 30% deposit and 70% balance before shipment.
Q: This machine is easy to use ? if I have no experience, I can also operate it well ?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
