Product Details:
Payment & Shipping Terms:
|
| PCB Size: | 50X50mm- 400X300mm | Dimensions: | 1100(L)X800(W)X1400(H)mm |
|---|---|---|---|
| Weight: | Approx:600Kg | Screen Frames Max Size: | 737mm |
| Screen Frames Min Size: | 420mm | Cleaning System: | Dry、Wet、Vacuum (Programmable) |
| High Light: | 400*300mm Pcb Board Printing Machine,400*300mm Pcb Board Printing Machine,420mm circuit printing machine |
||

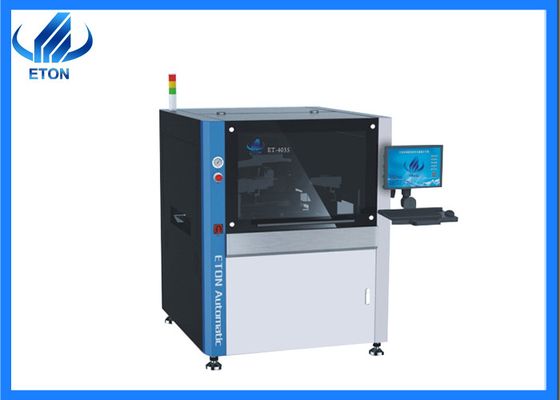

Full Aotomatic 400*300mm Pcb Board Printing Machine In Led Production Line
Full aotomatic 400*300mm pcb board printing machine in led production line
Machine Brief Introduction
ET-4035 is one of the automatic stencil printer machine. The function is printing solder paste on the PCB. It is very high precision, suitable for 0201,0402 mini components, and suitable for max stencil size is 737*737 mm, Max PCB size is 400*340 mm. Widely apply to all kinds of electrical product and led lighting product.
Technical parameter
| Specifications | Full automation vision stencil printer machine | |
| Machine Dimensions | 1100(L)X800(W)X1400(H)mm | |
| Machine Weight | Approx:600Kg | |
| PCB size | 50X50mm- 400X300mm | |
| Screen Frames | Min Size | 420mm |
| Max Size | 737mm | |
| Thickness | 25~45mm | |
| Board Location | Support System | Magnetic Pin/Up-down table adjusted |
| Clamping System | Patented over the top clamping, side clamping, vacuum nozzle | |
| Control Method | PC Control | |
| Cleaning System | Dry,Wet,Vacuum (Programmable) | |
| Printing Accuracy | ±0.025mm | |
Features
SMT Line solution
In SMT Line, there are automatic stencil printer machine, pick and place machine, reflow oven machine, loader and un-loader machine. Different SMT line design will be little different. Some factory will using one automatic stencil printer machine for different SMT line. ETON will provide the professional suggestion for the line design.
Certification
Won a national high-tech enterprise; 2015 industry technology innovation award; the 4th China LED pioneer award, etc.
Obtain a number of technical invention patents and technical property rights:
9 invention patents,
12 software copyrights ,
112 practical patents, etc.
Packing and delivery
By sea: The most economical and common way
By Air: If you need machinery in an emergency, air freight is also an option
By land or other way: The most suitable transportation method can be selected according to the needs of customers
Services
FAQ
1. Do you supply PCB conveyor machine?
A: Yes, we supply whole SMT line machine, like the conveyor, pick and place machine, reflow oven machine, etc.
2. Is this automatic stencil printer machine suitable for printing lighting driver board?
A: Yes, this automatic stencil printer machine is very high precision, suitable for max pcb size is 400*340mm, printing accuracy reach 0.025mm.
3. What is this machine warranty ? And how about the after sales service?
A: We provide one year warranty, during warranty, any parts need to be repaired and replaced will be free. And we will support machine install and training online, also machine support remote control, machine will be very easy for operate.
4. I want to produce led display, does your machine suitable for produce this product?
A: Yes, we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc
