Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Stencil Printer | Power Supply: | AC220V 50Hz |
|---|---|---|---|
| Warranty: | 1 Year | Dimension: | 1100(L)X800(W)X1400(H)mm |
| Weight: | 600Kg | Condition: | New |
| Cleaning System: | Automatic Cleaning | Software: | R&D Independently |
| Printing Accuracy: | ±0.025mm | Plate Type: | Screen Printer |
| High Light: | AC220V 50Hz Stencil Printer Machine,420mm Stencil Printer Machine,Auto Cleaning Solder Paste Printer |
||

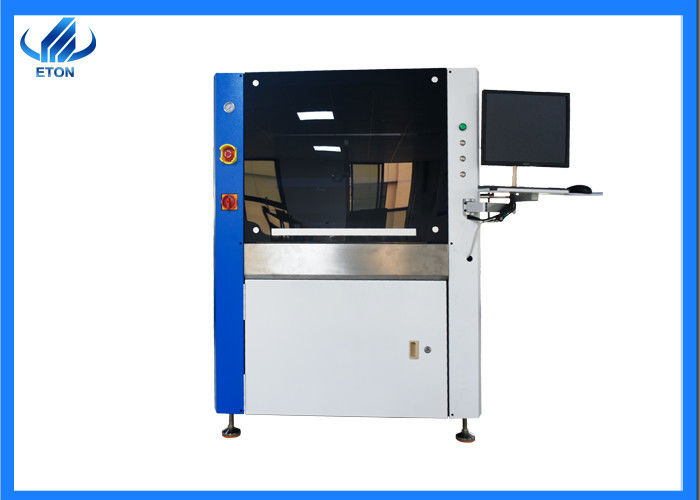

Full Automatic Vision Stencil Printer Machine Auto Cleaning Solder Paste Printer
Full automatic vision stencil printer machine Automatic Cleaning Solder Paste Printer
What are the features of SMT:
With high assembly density, small size and light weight of electronic products, the volume and weight of SMD components are only about one-tenth of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. The defect rate of solder joints is low.
Good high frequency characteristics, reducing electromagnetic and radio frequency interference.
It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.
Description of solder paste printer
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Automatic solder paste printer of Technical Parameter
|
Model Item |
ET-4035 | |
| Screen Frames | Min Size | 737mm |
| Max Size | 420mm | |
| Thickness | 25~45mm | |
| PCB Min Size | 50X50mm | |
| PCB Max Size | 400X340mm | |
| PCB Thickness | 0.2~6mm | |
| PCB Warpage | Max.PCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | |
| Transport Speed | Max 1500mm/S Programmable | |
| Board Location | Support System | Magnetic Pin/Up-down table adjusted |
| Clamping System | Patented over the top clamping, side clamping, vacuum nozzle | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Dry,Wet,Vacuum (Programmable) | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
RFQ
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
Q: What we can do for you?
A: We provide SMT machine,we can aslo provide Production line scheme and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of deposit.
Q: What is your payment terms?
A: 30% deposit and 70% balance before shipment.
Q: This machine is easy to use ? if I have no experience, I can also operate it well ?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
