Product Details:
Payment & Shipping Terms:
|
| No.of Camera: | 5PCS（Digital Camera) | PCB Length Width: | 250mm*any Length |
|---|---|---|---|
| Model: | HT-T7S | Mounting Mode: | Group To Pick And Group To Mount |
| PCB Thickness: | 0.5-1.5mm | Mounting Height: | ≤5mm |
| Mounting Speed: | 150000-180000CPH | Components: | LED 3014,3020,3528,5050 And Capacitors, Resistor,brigde Rectifiers.etc. |
| No.of Feeders Station: | 68 | No.of Head: | 34 |
| High Light: | 180000 CPH SMT Mounter,180000 CPH SMT Chip Mounter,SIRA SMT Chip Mounter |
||
Capacity reach 180000 CPH
Two module, part A or part B can be mounted separetely or synchrnousy.
34 nozzles, 68 feeders station
Group to pick and group to mount.
High precision, avaiable for RGB
5 pcs camera
High-end magnetic linear motor and servo motor
Making below product
Avaible for 5M, 50M, or any length of flexible strip and roll to roll.
Flexible strip 1
Flexible strip 2
Flexible strip 3
Production accessories
The pick and place have many accessries, we high-quality accessories. such as Grating scale imported from Japan Nidec, Guide rail imported from Japan THK, etc.

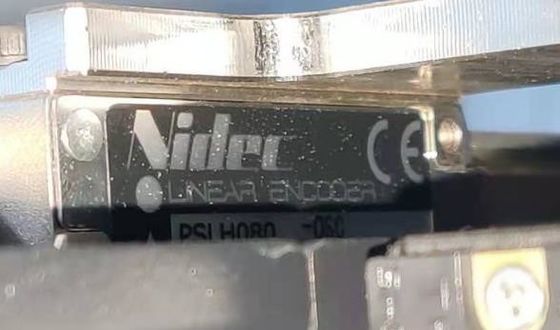

Grating scale
Code reader

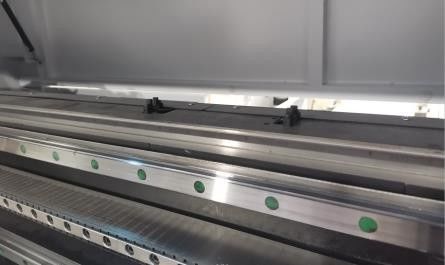

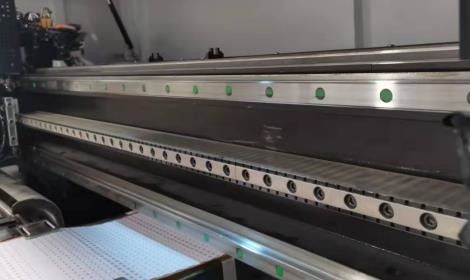

Guide rail
Parameter
| Technical parameter | |

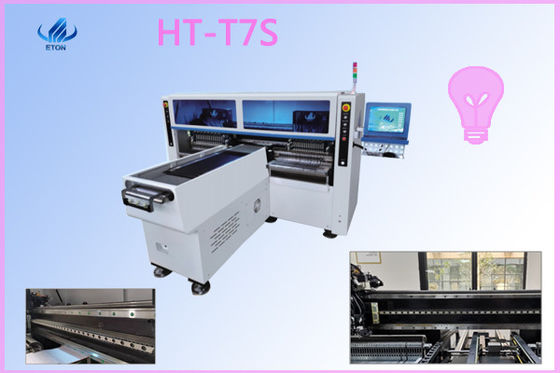

| Model | HT-T7S |
| Dimension(mm) | 3100*2300*1550 |
| Total weight | 1700kg |
| PCB | |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5-1.5mm |
| PCB clamping | Vacuum absorption, cylinder splint,adjustable track width |
| Mounting mode | group to pick and group to mount |
| No.of camera | 5PCS(Digital camera) |
| vision alignment, mark correction | |
| repeat mounting precision | ±0.02mm(repeat precision) |
| mounting height | ≤5mm |
| mounting speed | 150000-180000CPH |
| components | LED 3014,3020,3528,5050 and capacitors, resistor,brigde rectifiers.etc. |
| No.of feeders station | 68PCS |
| No.of head | 34PCS |
Our company ETON is Top brand of pick and place machine in China. 5200 square meters industrial park, over 10 years LED lighting field, professional R&D team and after sales service team. Have series of products, for pick and place machine: RT (RT-1/1S,RT-2, RT-4), HT (T9/T7S/X9/F9/F7S/E8S/E8D), etc. in addition, we have SMT Peripheral automation equipment. For prduct market have so many high quality customer, incudling Domestic and Foreign.
Industrial Park
Show room
Work room
We have many experience for exihibition show, incudling Domestic and Foreign. we can provide professional advice to you, cause we have over 10 years experience of pick and place machine. in addition, we have professional R&D team ensure the high quality machine. provide suitable suggestion to every customer.
ETON have below certification to ensure the high quality product, software patents can make the product more precious and more quick, more suitable for customer requirment. also our company care about lower consumption, Environmental friendly. contribute to the society.
we can according to the product, layout, requirment to design better product line to customer, also that is we alway do it. get many high ratings from customer.
We can provide Five star services, from Pre-sale, On sale, after sale. we alway provide best support to you.
Pre-sale:
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
On sale:
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
After sale:
Arrange engineers to come to the factory to install, debug and teach free of charge;
One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
Every year there is an opportunity for free machine maintenance;
Visit customers regularly to understand the usage of the machine and collect customer feedback
Q: What we can do for you?
A: SMT Solution manufactures; Reliable SMT Partner, customizable available.
Q: Are you a trade company or manufacturer?
A: Full SMT machines Top maufacturer for smt line in China; have 5200 square meters industrial park
Q: What is your delivery date?
A: About 20 days after receipt of full payment.
Q: What your main customers?
A: OPPLE, Sk YQURRO, NAVICATE, FSL,OML,SHIMMERING,NTL, etc.
Q: Why choose you?
A: Top brand SMT Supplier in China; Professional Supplier on Alibaba; professional R&D team and service team.
