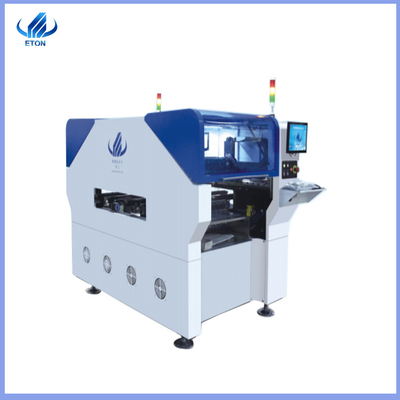

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine

large.img.alt
small.img.alt

Large Image :  6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE
Model Number: RT-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit/units
Price: FOB USD 67000-75000
Packaging Details: Vacuum packing in wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 50 unit/units per month
Detailed Product Description
Name: LED SMT Mounter LED Production Line Brand: ETON
Model No: RT-2 Dimension: 1200*1930*1500 MM
Weight: 2500 KG PCB Size: Max:450*300mm Min:80*80mm
Application: SMT PCB Assembly Production Line Mounting Speed: 80000CPH
Quality: 100%TESTED Delivery: 15-30 Days
High Light:

6KW Led Tube Light Manufacturing Machine

,

80000CPH Led Tube Light Manufacturing Machine

,

80000CPH led light making machine

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine



ETON LED tube light manufacturing machine LED lamp assembly machine



Product Description

The machine is introduced
1. This is multifunctional machine rt-2 with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
2. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3. It's intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc
4. Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
5. It is highspeed machine,the optimum speed is 80000CPH

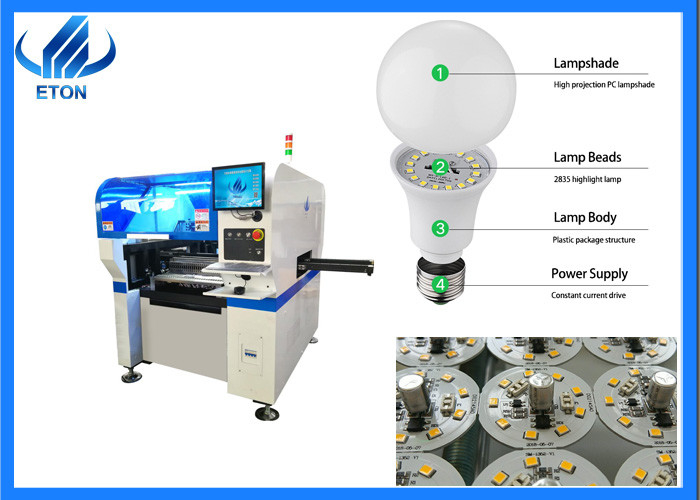

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 0

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 1

Specification



Dimension (L*W*H)
1200*1930*1500mm
Total weight
2500kg
PCB Length width
Max:450*330mm Min:80*80mm
PCB thickness
0.1-6mm(If<0.6mm need jig)
PCB clamping
pneumatic
No.of feeders station
64 PCS
No.of head
20 PCS
Mounting speed
80000 CPH
Power
AC 380 V
Operating environment
6 KW



Company Profile

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 2

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 36KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 4

Services

1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!



packing

All machines are packed with vacuum and wooden packing like the one in the pictures.

Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.

6KW Led Tube Light Manufacturing Machine Led Lamp Assembly Machine 5

FAQ



1. Do you supply PCB conveyor machine?

A: Yes, we supply whole SMT line machine, like the conveyor, pick and place machine, reflow oven machine, etc.



2. Is this automatic stencil printer machine suitable for printing lighting driver board?

A: Yes, this automatic stencil printer machine is very high precision, suitable for max pcb size is 400*340mm, printing accuracy reach 0.025mm.



3. What is this machine warranty ? And how about the after sales service?

A: We provide one year warranty, during warranty, any parts need to be repaired and replaced will be free. And we will support machine install and training online, also machine support remote control, machine will be very easy for operate.



4. I want to produce led display, does your machine suitable for produce this product?

A: Yes, we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc



5. We do not have any experience for machine operate, is it difficult for operating ?

A: Our machine is very easy ! friendly man-machine interface, simple and easy to learn, operator can control machine within a few days of training.



6. I am from India, can I pay in Indian rupees?

A: So sorry, this order only support pay by USD or CNY. And we also support pay by Alibaba directly.
