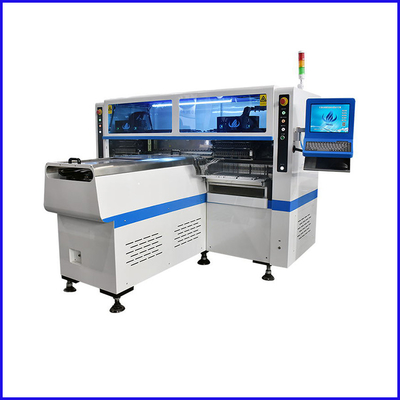

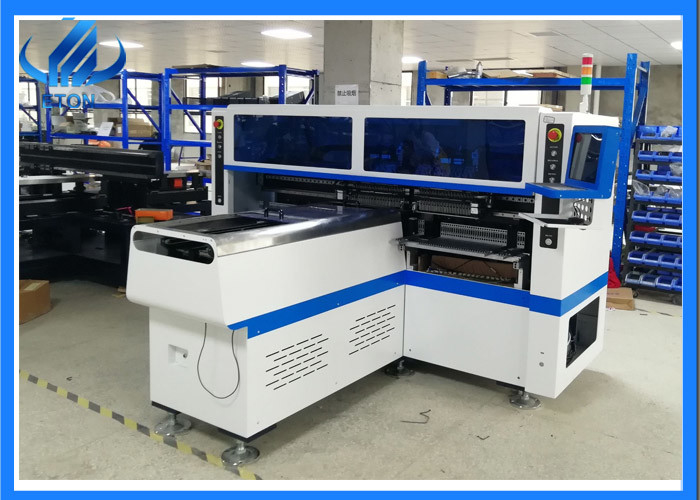

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment
3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment

Large Image :  3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: FOB USD 80000-90000 unit/units
Packaging Details: Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements. Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 50 unit/units per month
Detailed Product Description
Name: Led Lamp Making Machine Dimension: 2700*2300*1550mm
Total Weight: 1700 KG PCB Size: Max: 1200*330mm Min: 100*100mm
PCB Thickness: 0.5-5mm Mounting Mode: Group To Take And Group To Mount
Warranty: 1 Year Applicable Components: 0402,0805,0603,1206
Type: SMT Machine Related Products Pcb Thickness: 0.5-5 Mm
High Light:

5050 Led Lamp Making Machine

,

3528 Led Lamp Making Machine

,

3020 led light making machine

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment



led light machine production led bulb automatic machine pcb assembly line



Product Description

Dimension
2700*2300*1550mm
PCB size
Max:1200*330mm Min:100*100mm
PCB Thickness
0.5-5mm
Mounting Mode
Group to take and group to mount
No. of Camera
5 PCS digital camera
Mounting Speed
200000-250000 CPH
Applicable Components
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
Feeders Station
68PCS
No. of Nozzles
68PCS
X,Y Axis drive way
High-end magnetic linear motor +servo motor



1. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
2. Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 0



Company Profile

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 1



Our patents and certifications

We got 9 invention Patents, 112 practical patents,12 software copyrights.

◎ Electronic feeder feeding system.

◎ Vision alignment flight identification, Mark correction.

◎ Auto-optimization after coordinates generated ,etc.

◎ Non-stop material re-loading function.

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 2





More smt production line equipments

We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.

Below are the suggestion of basic steps for the pick and place progress and equipment :

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 3

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 4

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment 5





FAQ

Q1: Is it safe during the delivery?
A: All the machine is packed safely, by standard strong wooden carton with vacuum package.

Q2: how is the breakdown rate of machine?
A: our machine is very stable, the breakdown rate is less than 0.001.

Q3: Does your machine have quality certificate?
A: Our machine have pass CE certificate, SIRA, ISO and have patent

Q4: Can you support whole SMT line?
A: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
