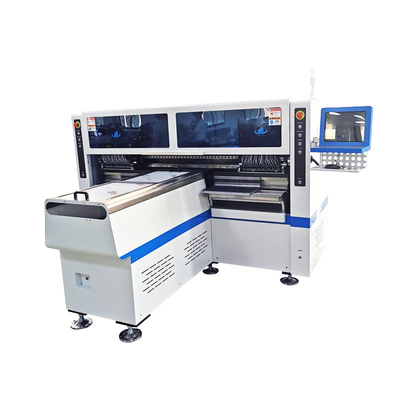

High Speed SMT Mounting Machine 250000CPH Dual Arm 68 PCS Nozzles

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Speed SMT Mounting Machine 250000CPH Dual Arm 68 PCS Nozzles

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-F9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Dimention(mm): 2700*2300*1550 Total Weight: 1700kg
PCB Length Width: MAX 1200*330mm MIN100*100mm PCB Thickness: 0.5-5mm
Mounting Precision: ±0.02mm Mounting Height: ≤5mm
No.of.feeders System: 68PCS No.of .head: 68PCS
Components: LED 3012/3020/3528/5050,resistor,capacitor,bridge Rectifiers Feeding Way: Electric Feeder With Double Motor
High Light:

High Speed SMT Mounting Machine

,

Dual Arm SMT Mounting Machine

,

200000CPH Pick And Place Machine

High Speed SMT Mounting Machine 250000CPH Dual Arm 68 PCS Nozzles



Features

  • Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.
  • producing with 4 types materials at the same time with high capacity .
  • available for borad with any proportion of LED chip and resistor.
  • Calibraton automatcally, high-precision, available for RGB
  • Accessories imported top brand ensure to high quality
  • Elxclusive patend technology:Group to take and Group to mount
.png

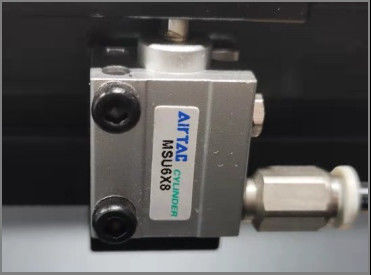

Cylinder

Imported from Japan THK

Drive the machine for linear reciprocating motion High precision, strong flexibility, strong sealing and not easy to deform, strong adaptability.

Guide rail.jpg

Grating scale

AIRTAC Brand from Taiwan, China

Support and guide moving parts, reciprocating linear motion in a given direction, used in mechanical structures with high precision requirements.

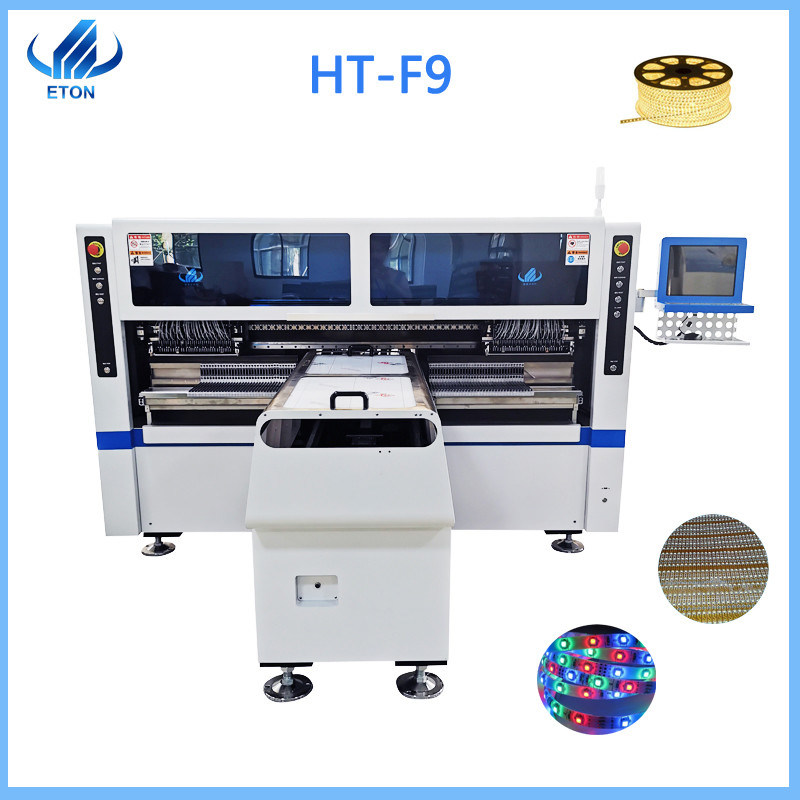

Model HT-F9
system windows 7
software R&D indepentently
display touch screen monitor
input device keyboard,mouse
No.of camera 5PCS(Digital camera) vision alignment, mark correction
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
Mounting speed 200000-250000CPH
No.of feeders station 68PCS
No.of head 68PCS
power 380AC 50Hz
Power consumption 6kw
operating environment 23℃±3℃

Application

Show the photos. suitable for rigid PCB and LED flexible strip, led tube, panel light.



F9



SMT whole line and machine



ETON is Top brand of pick and place machine in China. over 10 years LED lighting field, professional R&D team and after sales service team.

ETON supply whole SMT line machine, mainly included : Automatic stencil printer, Semi-automatic stencil printer, Conveyor, Pick and place machine, Reflow oven machine, Loader, Un-loader machine, PCB cleaning machine, stencil printing machine, etc.



smt line 3






Application Company show

Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.



Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .



High quality: We have strictly quality control during all production from raw materials to the finished machine.



High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.



4



1



Our Exhibition

ETON got more than 14 years R&D experience in SMT industry equipped with core technology

ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.

Our machines are exported to many overseas countries, we have participated in exhibitions in China, India, Turkey, Egypt, Pakistan, Tunisia, Vietnam, Thailand, Germany, Russia and other countries and regions, so that more overseas customers know us.

High Speed SMT Mounting Machine 250000CPH Dual Arm 68 PCS Nozzles 7





FAQ

  • Do you have oversea after sale service?

    We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.

  • Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.

  • How is the training?

    After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will

  • train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make

  • it through, we also have special one-on-one online training and video

  • tutorials..

  • It’s hard to use the machine?

    Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how

  • to make it more intelligent and operate friendly.

  • Does your machines have quality certificates?

    We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and

  • many technology patents, and have rich experience (more than 10 years) in LED light

    production line program.

  • why should you buy from us not from other suppliers?

    We are high tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich

  • experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
