Product Details:
Payment & Shipping Terms:
|
| Dimention(mm): | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | 0.1-6mm (if＜0.6mm Need Jig) |
| Mounting Precision: | ±0.04mm | Mounting Speed: | 40000CPH |
| No.of.feeders System: | 32PCS | No.of .head: | 10PCS |
| Components: | LED Chip, Capacitors, Resistors, IC, Shaped Componets. Etc. | Feeding Way: | Electric Feeder With Double Motor. |
| High Light: | 40000CPH SMT Mounting Machine,LED chip SMT Mounting Machine,40000CPH Smt Led Production Line |
||

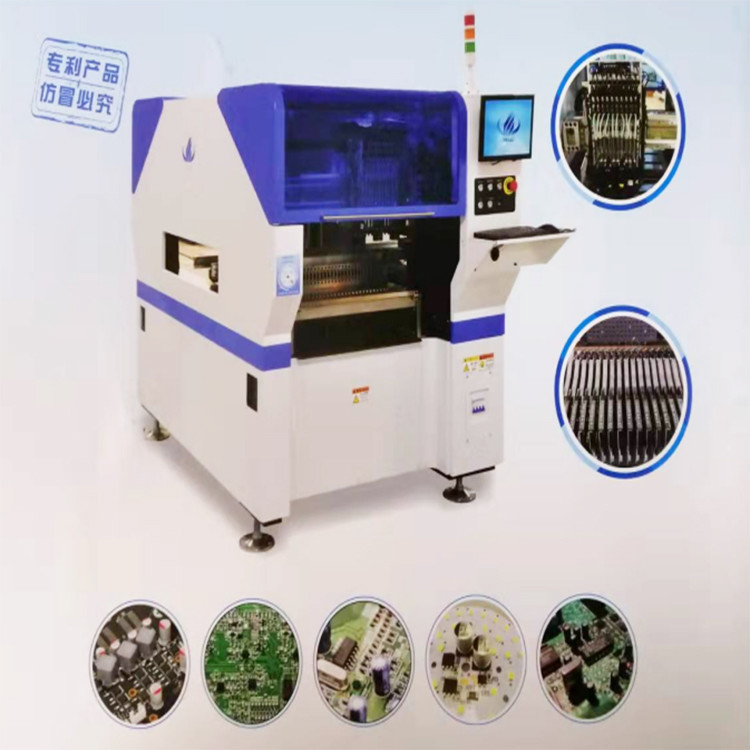

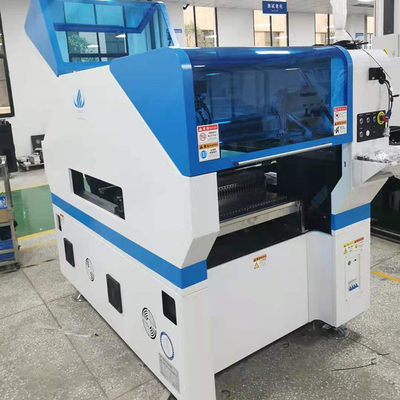

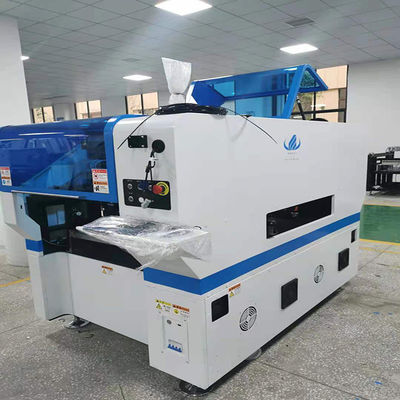

40000CPH SMT Mounting Machine Smt Led Production Line Pick And Place
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.
OEM&ODM : Supported with an excellent RD team ETON has strong ability to OEM and
ODM for customers ,custom unique design for you with the best cost.
High quality: We have strictly quality control during all production from raw materials to the finished machine.
High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .

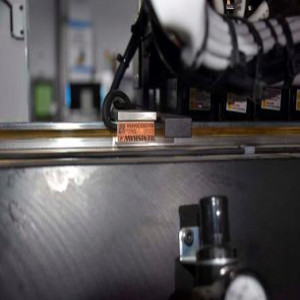

Grating scale
Imported from UK RENISHAW
Mark camera
Hikvision brand from China top one
| Model | RT-1 |
| Dimension | 1200*1930*1500 |
| total weight | 2000kg |
| PCB | MAX:450mm*350mm MIN:80*80mm |
| PCB length width | MAX:450mm*350mm MIN:80*80mm |
| PCB thickness | 0.1-6mm (if＜0.6mm need jig) |
| PCB clamping | pneumatic |
| Mounting mode | Group picking and separately placing ;separately picking and separately placing |

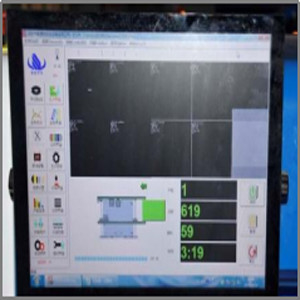

| System | windows 7 |
| No.of camera | 2PCS |
| accurate image recognition | |
| vision alignment, mark correction | |
| Repeat mounting precision | ±0.04mm |
| mounting height | standard:≤15mm(height customizable) |
| mounting speed | 40000CPH |
| components | LED chip, capacitors,resistor,shaped components, etc. |
| components space | 0.2mm |
| No.of feeders station | 32PCS |
| No.of head | 10PCS |
| air supply | indepentently research and development by ETON. |
| electrical control | indepentently research and development by ETON. |
| motion control card module 1 set | High-end magnetic linear motor+servo-motor |
| XYZ Axis drive way | electric feeder with double motor |
Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
After sale
Arrange engineers to come to the factory to install, debug and teach free of charge;
One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
Every year there is an opportunity for free machine maintenance
Visit customers regularly to understand the usage of the machine and collect customer feedback.
Film packaging
Add foam+film packaging
Unique tin foil packaging
customized Strong wood carton packing
spare parts
spare parts
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
WarrantyEvery machine will be checked carefully before shipping out. Buyers should check the package once receiving. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Printing Speed.In the printing operation, too fast may cause print leakage;Too slow a speed can cause uneven printing.The printing speed is maintained in the range of 10-25mm/s to achieve the best results.
We got 9 invention Patents, 112 practical patents,12 software copyrights.
Electronic feeder feeding system.
Vision alignment flight identification, Mark correction.
Auto-optimization after coordinates generated ,etc.
Non-stop material re-loading function.
