Multifunctional Smt Mounter Machine Driver Board Two Head 1930mm Width

Multifunctional Smt Mounter Machine Driver Board Two Head 1930mm Width
Multifunctional Smt Mounter Machine Driver Board Two Head 1930mm Width

Large Image :  Multifunctional Smt Mounter Machine Driver Board Two Head 1930mm Width

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: RT-2
Detailed Product Description
Machine Name: SMT Machine / Pick And Place Machine/ Mounter Model: RT-2
Mounting Head: 20 Pcs Machine Speed: 80000 Cph
High Light:

Multifunctional Smt Mounter Machine

,

Two Head Smt Mounter Machine

,

1930mm Width SMT Mounting Machine

Multifunctional Smt Mounter Machine Driver Board Two Head 1930mm Width



Multifunctional mounter machine

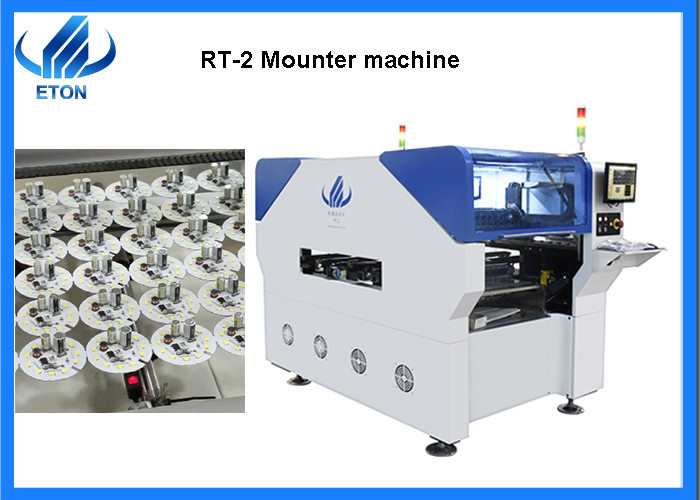

RT-2 is the multifunctional two mounting head two conveyor mounter machine, widely apply to all kinds of electrical board and led lighting board, very multifunctional and intelligent.



Features of RT-2 model

1. Two mounting heads, support for mounting two board at the same time independently

2. High capacity mounter machine with 80000 cph ( that means if your board chip is 20 components, one hour theoretical capacity is 4000 pcs)

3. High-end magnetic linear motor , long machine life time, good performance.

4. R&D independently software support, machine whole life support free upgrade



Mounter machine parameter

Dimension
Length 1200mm
Width 1930mm
Height 1500mm
PCB
PCB Length Width Max:450*300mm(Non-unidirectional 610*300) Min:80*80mm
PCB Clamping Pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
Vision System
No. of Camera 4 PCS
Accurate image recognition
Vision alignment, MARK correction
Mounting Precision ±0.04mm
Mounting Height ≦15mm
Mounting Speed 80000 CPH
Components LED , capacitors, resistors, shaped components, etc.
Components Speed 0.2mm
No. of nozzles 20 PCS
Feeding way Electric feeder with double motor



SMT line solution

ETON as the largest smt machine manufacturer in China. We support whole smt line solution, included solder paste stencil printer machine, pick and place machine, SPI, AOI, Reflow oven machine, unloader, loader, ng ok unloader machine, etc

We could supply the line solution according to your product details.
