Double Module Pick & Place Machine 4pcs Vision Alignment Camera

Double Module Pick & Place Machine 4pcs Vision Alignment Camera
Double Module Pick & Place Machine 4pcs Vision Alignment Camera Double Module Pick & Place Machine 4pcs Vision Alignment Camera Double Module Pick & Place Machine 4pcs Vision Alignment Camera Double Module Pick & Place Machine 4pcs Vision Alignment Camera

Large Image :  Double Module Pick & Place Machine 4pcs Vision Alignment Camera

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: RT-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Dimension: 1200*1930*2500 PCB Length Width: MAX:450*300mm MIN:80*80mm
PCB Clamping: Pneumatic Mounting Mode: Group Picking And Separately Placing, Separately Picking And Separately Placing.
System: Windows 7 No.of Camera: 4pcs
No.of Head: 20pcs No.of Feeders Station: 64pcs
Electrical Control: Independent Research And Development By Eton Feeding Way: Electric Feeder With Double Motor
High Light:

Double Module Pick & Place Machine

,

pneumatic Pick & Place Machine

,

SIRA automatic pick and place machine

4 PCS Vision alignment camera double module multi pick and place machine



Our company

ETON has 5200 square meters industrial park ensure to the brand effect and present company strength , More than 500 employees.

In 2007 to now, Established Taipei R&D Center and began to develop placement machines to New magnetic linear motor multifunctional placement machine HT-F9 and HT-T9 was released. over 10 years LED lighting field experience sharing, provide the most suitable program to every clients.








ETON is Pioneer enterprise of pick and place machine localization China practitioners of high-end intelligent equipment.





Production Introduction

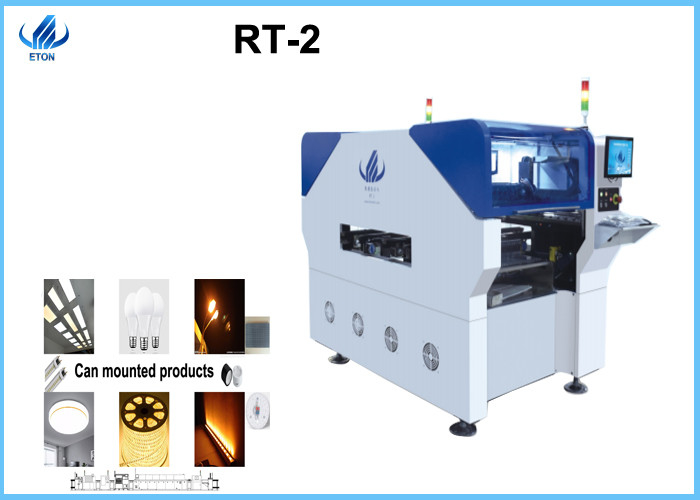

RT-2 20211125

Features

  • High accuracy- Grating scale Imported from UK RENISHAW.

  • High precision- Guide rail Imported from Japan THK.

  • During running, it has low noise, wear resistance, and high-speed movement- Drag chain Imported from Germany IGUS.

  • Mounting speed can reach 80000CPH

  • Strong technology support for software upgrade- Software R&D by ETON, free upgrade whole lifetime

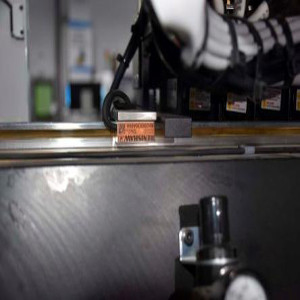

Grating scale 300

Grating scale

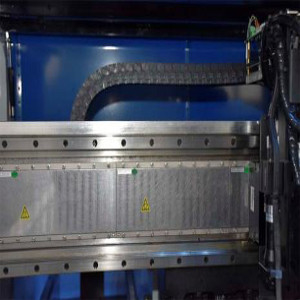

Guide rail300.jpg

Guide rail

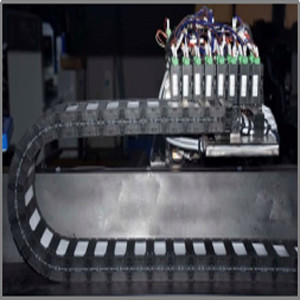

Drag chain300.jpg

Drag chain



Technical Parameter







Model

RT-2

length

1200mm

width

1930mm

height

1500mm

Total weight

2500kg

PCB

PCB length width

MAX:450*300mm
MIN:80*80mm

OS

System

windows 7

software

R&D independently

Vision system

No.of camera

4pcs

vision alignment, mark correction

mounting speed

80000CPH

components

LED chip, capacitors, resistors, IC, shaped componets. etc.

components space

0.2mm

No.of feeders station

64pcs

No.of head

20pcs

operating environment

23±3℃

Air supply

0.4-0.6mpa,4-6kgf/cm²,300N/Min

Motion control card module 1 set

independent research and developmet by eton

XYZ Axis drive way

high-end magnetic linear motor

Feeding way

electric feeder with double motor.



Our service

ETON Service from pre-sale to after sale, we have professional service team, ensure to solution the customers questions.

  • Pre-sale

    1.Provide equipment and SMT production lines that meet customers' needs according to customer needs;

    2.Provide relevant suggestions to customers;

  • On sale

    Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress

  • After sale

    1.Arrange engineers to come to the factory to install, debug and teach free of charge;

    2.One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;

    3.Every year there is an opportunity for free machine maintenance

    Visit customers regularly to understand the usage of the machine and collect customer feedback.



Packing detail




1.Film packaging


2.Add foam+film packaging


3.Unique tin foil packaging








4.customized Strong wood carton packing


5.spare parts


6.spare parts



Application

Led lighting, kinds of products, ETON smt machines can do it!




Certification

We got 9 invention Patents, 112 practical patents,12 software copyrights.

  • Electronic feeder feeding system.

  • Vision alignment flight identification, Mark correction.

  • Auto-optimization after coordinates generated ,etc.

  • Non-stop material re-loading function.

Double Module Pick & Place Machine 4pcs Vision Alignment Camera 13
