2000mm/Min SMT Reflow Oven Smt Machine Upper 8 Hot Air Heating

large.img.alt
large.img.alt

Large Image :  2000mm/Min SMT Reflow Oven Smt Machine Upper 8 Hot Air Heating

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-R8
Detailed Product Description

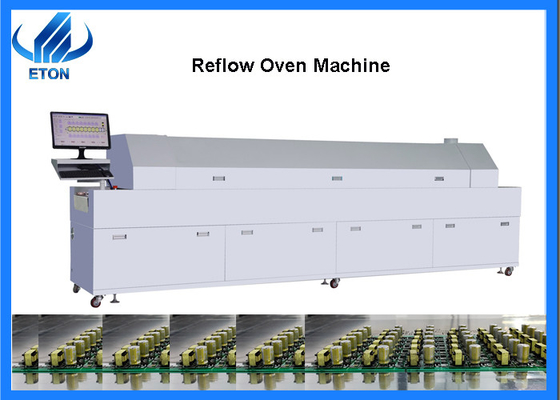

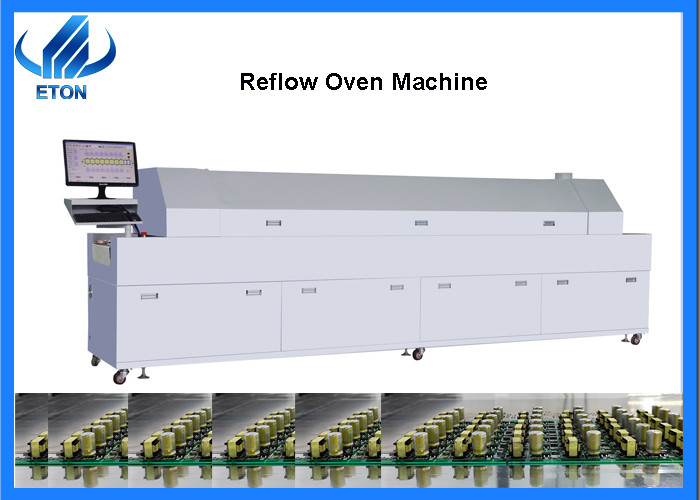

Machine Name: Reflow Oven Machine/smt Machine Machine Application: Smt Line
Heating Method: Hot Air Conveyor Speed: 0-2000mm/min
High Light:

2000mm/Min SMT Reflow Oven

,

28KW SMT Reflow Oven

,

28KW smt reflow soldering oven

2000mm/Min SMT Reflow Oven Smt Machine Upper 8 Hot Air Heating



Reflow oven machine parameter



Machine model ET-R8
Heating system Number of heating zones Upper 8 hot air heating, lower 8 hot air heating
Length of heating zone 3000mm
Heating method Hot air
Delivery system PCB maximum width 400mm (mesh)
Transport direction Left to Right or Right to Left
Conveyor belt height Mesh belt 880±20mm
Delivery method Mesh belt
Conveyor speed 0-2000mm/min
Control System Power supply 5 line 3 phase 380V 50/60Hz
Starting power 28KW
Normal working power 7KW
Heating time About 15 minutes
Temperature control range Room temperature~350℃
Temperature control method PID control + SSR drive
Temperature control accuracy ±1℃
Abnormal alarm Abnormal temperature alarm
Whole machine system Dimensions (length*width*height) 4600*900*1400 mm
Machine weight 1600 kg



Reflow oven machine features



1. All temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃.

2. Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.

3. The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning.

4. Special long-life nickel-nosed heating wire type heat source, abundant power, rapid heating, less than 20 minutes from room temperature to constant temperature.

5. Adopting imported high-speed air-carrying motor direct drive for thermal cycle, low noise, low vibration and high thermal cycle efficiency.

6. It adopts Panasonic PLC industrial control products to control the upper and lower computer, which has first-class stability.

7. It has a delay switch protection function to prevent the transmission parts from deforming due to uneven cooling.

8. It has a power-off protection function to ensure the normal output of the PCB board without damage after power-off.

9. With over-temperature sound and light alarm and emergency braking system.

10. Simplified and traditional Chinese MMI operation interface and artificial intelligence software control, which greatly facilitates the use of users

11. It has a complete online temperature test curve and analysis, storage, recall and printing functions.

12. Dedicated temperature acquisition module, high accuracy and fast speed, with cold junction compensation function.

13. The temperature collection adopts the RS-485 interface, which is convenient for remote device temperature monitoring.

14. With timing automatic shutdown function

15. Host computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input

16. Using PLC control, the temperature control is stable and accurate, and the temperature of each temperature zone is individually controlled.

17. Imported high-quality high-temperature-resistant motor with good structure and good heat dissipation to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow.



Main part brand

Control PLC and temperature control module, communication module Siemens from Germany
Control host Professional brand machine: BenQ or Great Wall
Transport motor, tooth box STK 90W tooth box 1: 120K
Hot air motor Taiwan Mitsukoshi 90W
Cylinder Taiwan Airtec brand
The electromagnetic valve Taiwan Airtec brand
Intermediate relay Japan OMRON
Frequency converter Taiwan Delta
Heating wire Nichrome wire imported from Japan
Solid state relay Taiwan Yangming
Master switch Chint Brand
