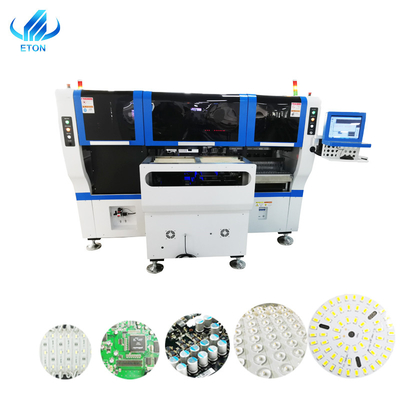

Power Driver 90000 CPH SMT Mounting Machine Windows 7 System

Power Driver 90000 CPH SMT Mounting Machine Windows 7 System
Power Driver 90000 CPH SMT Mounting Machine Windows 7 System Power Driver 90000 CPH SMT Mounting Machine Windows 7 System Power Driver 90000 CPH SMT Mounting Machine Windows 7 System

Large Image :  Power Driver 90000 CPH SMT Mounting Machine Windows 7 System

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-E8D-1200
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Dimention: 3150*2250*1650 Total Weight: 2500kg
PCB Length Width: Max：1200*300mm Min：100*100mm PCB Thickness: 0.5-5mm
System: Windows 7 Software: R&D Indepentently
No.of Camera: 4 Sets Mounting Speed: 90000CPH
Components: LED Chip, Capacitors, Resistor, IC, Shaped Components.etc. Electrical Control: Indepentent Research And Development By Eton.
Highlight:

90000 CPH SMT Mounting Machine

,

Power Driver SMT Mounting Machine

,

90000 CPH led making machinery

High precision power driver 90000 CPH smt led pick and place machine

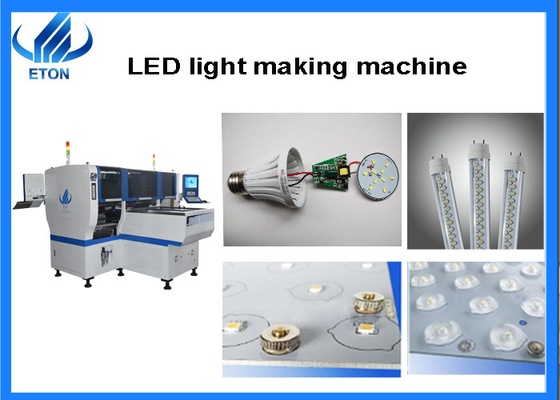

Application



ETON smt machines suitable for led production line. many product can make it. led bulb, tube,DOB bulb, Downlight, Panel light, display, lens, etc.

3

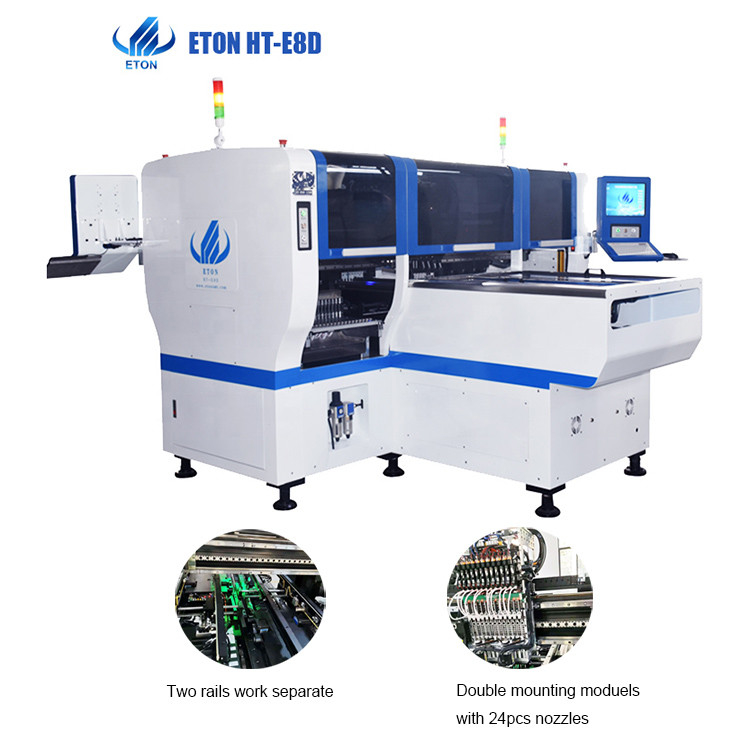

Production Introduction



E8S

Features

  • Dual system, dual module multifuncational mounter. to produce two diffenrent products at the same time.

  • Mouting speed can reach 90000CPH.

  • Use Electric feeder with double motor ensure quickly to pick and place components.

  • High precision, High-end magnetic linear motor + servo motor

  • Auto-optimization after coordnates generated,also ensure to high precision.



Grating scale 300

Grating scale

Guide rail300.jpg

Guide rail

Drag chain300.jpg

Drag chain



Technical Parameter

Model HT-E8D-1200
Dimention 3150*2250*1650
Total weight 2500kg
PCB length width Max:1200*300mm
Min:100*100mm
PCB thickness 0.5-5mm
system windows 7
software R&D independently
No.of camera 4 sets
vision for the flight identification, mark correction.
Mounting speed 90000CPH
Components led chip, resistors, capacitors, IC, shaped components. etc.
transmission direction Both direction(option)
transmission mode Auto online drive
electrical control Independent research and development by ETON
no.of.feeders system 48pcs double modules
no.of .head 24pcs double modules
feeding way Electric feeder with double motor



Our company

In 2007, Established Taipei R&D Center and began to develop placement machines

In 2015-2017, HT-T7(high speed pick and palce machine)/HT-E9(multi-function machine)was completed R&D and begin selling.

After 2018, HT-E5S/E5D,HT-E8S/E8D(new magnetic linear motor multifunctional placement machine was completed R&D and begin selling.



1

​




Manufacturing Capacity

ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , We have strong manufacturing capabilities.The annual sales scaled over 800 million yuan.







Related machine

Led lighting, ETON smt machines for led production line. all kinds of pick and place machine, conveyor, uploader, stencil printer, relow oven and so on.

Noted: ETON can provide smt whole production line for you.






Certification

We got 9 invention Patents, 112 practical patents,12 software copyrights.

  • Electronic feeder feeding system.

  • Vision alignment flight identification, Mark correction.

  • Auto-optimization after coordinates generated ,etc.

  • Non-stop material re-loading function.
