Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Power: | 380 AC 50 HZ |
|---|---|---|---|
| Warranty: | 1 Year | PCB Length Width: | Max 500*300mm Min 100*100mm |
| Total Weight: | 2800kg | Power Consumption: | 8KW |
| Software: | R&D Independently | Dimension: | 1650*2000*1550 Mm |
| High Light: | Multifunctional LED Mounting Machine,SMT Line LED Mounting Machine,SMT Led Bulb Manufacturing Machine |
||
SMT Line Multifunctional LED Mounting Machine Led Bulb Manufacturing Machine
Features of led mounitng machine
Dual system, dual module multifunctional pick and place machine. To produce two different products at same time
Mounting components: LED/capacitors/resistors/IC/shaped components/etc.
Component: Min 0402 Max. height 20mm
Application: Power driver, electric board, lens, DOB, household appliance, LED lights, etc.
Exclusive patented technology of led mounting machine
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
Technical parameter of led mounting machine
| Model | E5D |
| Dimension | |
| Length | 1650mm |
| Width | 2000mm |
| Height | 1550mm |
| Total Weight | 2800kg |
| PCB | |
| PCB Length Width | Max:500*300mm Min:100*100mm |
| PCB Thickness | 0.5-3mm |
| PCB Clamping | Electric clamping+ adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |

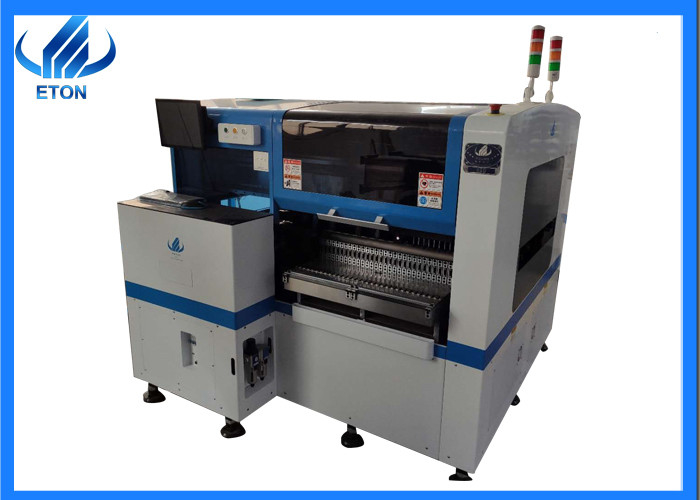

Pictures of led mounitng machine
