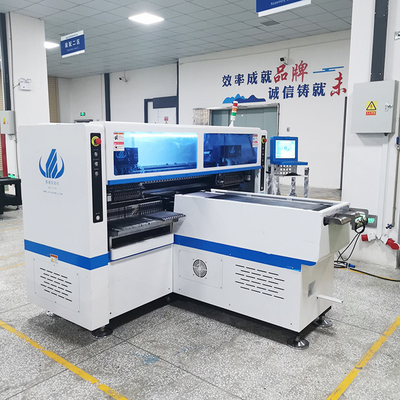

Four Module SMT Mounting Machine 250000 CPH Dual Arm Window 7

Four Module SMT Mounting Machine 250000 CPH Dual Arm Window 7
Four Module SMT Mounting Machine 250000 CPH Dual Arm Window 7

Large Image :  Four Module SMT Mounting Machine 250000 CPH Dual Arm Window 7

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
System: Window 7 Software: R&D Independently
PCB Length Width: 250mm*any Length Mounting Mode: Group To Pick And Group To Mount
No.of Camera: 5PCS(Digital Camera) Mounting Speed: 200000-250000CPH
No.of Feeders Station: 68PCS No.of Head: 68PCS
Conveyor Transmission: MAX Length: 1000mm XYZ Axis Drive Way: High-end Magnetic Linear Motor + Servo Motor
High Light:

Four Module SMT Mounting Machine

,

250000 CPH SMT Mounting Machine

,

250000CPH smt pick and place machine

Four Module SMT Mounting Machine 250000 CPH Dual Arm Window 7



Dual arm four module 250000 CPH high speed pick and place machine

High-performance placement machines generally use a vision centering system. The vision centering system uses digital image processing technology. After the suction nozzle on the placement head picks up the component, it is captured by a camera fixed on the placement head or fixed on a certain position of the fuselage during the process of moving to the placement position. Image, and through the optical density distribution of the image detection element, these optical densities pass through the CCD optocoupler array composed of many small and precise photosensitive elements on the camera in digital form, and output the gray value of 0~255. The gray value is directly proportional to the optical density. The larger the gray value, the clearer the digital image.



Application

So many products ETON SMT machine can make it, led bulb, panels, lens, led strip, street light, power driver, tube, etc. that also we can do it. wide -use pick and place machine, it's good for you. High speed pick and place machine avaiable for 5M, 50M or any length of flexible strip and roll to roll.

 5



Production Introduction

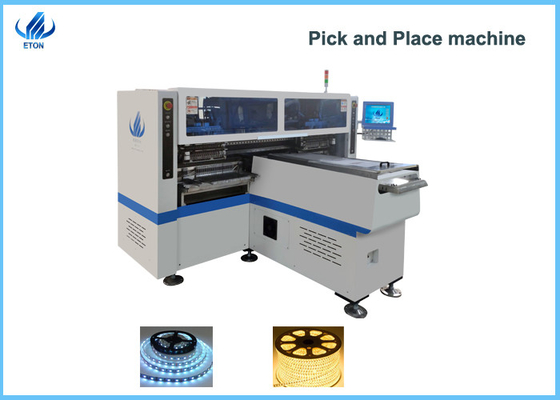

HT-T9 pick and place machine



Features

  • Dual arm four module, 68 pcs nozzle of head.

  • Vision camera, vision alignment, Mark correction.

  • Calibration automaically, high precision can mount LED 3014/3020/3528/5050.

  • Mounting speed 250000 CPH , High quality and high speed, Code reader, High precision magnetic linear motor, etc.

  • Vacuum adsorption, cylinder splint, adjustable track width.

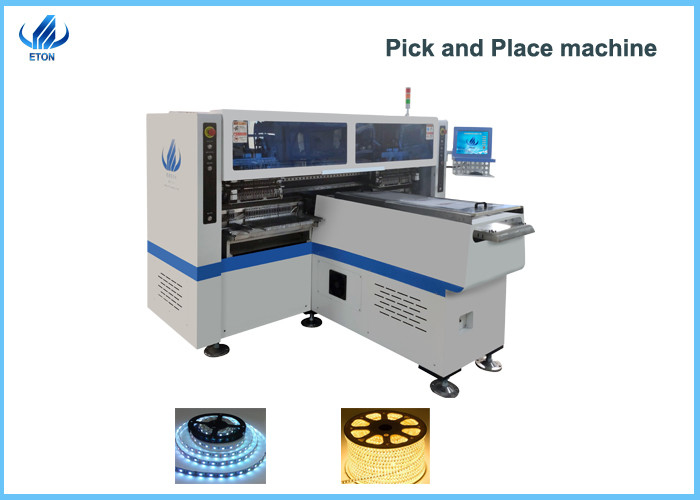

HT-T9 pick and place machine



Technical Parameter

Model HT-T9
Dimension(mm) 3100*2300*1550
Total weight 1700kg
PCB length width 250mm*any length
PCB thickness 0.5-1.5mm
PCB clamping Vacuum absorption, cylinder splint,adjustable track width
Mounting mode group to pick and group to mount
input device keyboard, mouse
No.of camera 5PCS(Digital camera)
vision alignment, mark correction
repeat mounting precision ±0.02mm(repeat precision)
mounting height ≤5mm
mounting speed 200000-250000CPH
components LED 3014,3020,3528,5050 and capacitors, resistor,brigde rectifiers.etc.







Sales Service

  • We can provide SMT whole production line solution.

  • Local engineer in India,Egypt, Turkey,which can provide you with the greatest convenience. such as quick free installation and Training.

  • One year for warranty.

  • Two regular visits custmer one year.

  • Free Software Upgrade: Offer free software upgrade whole lifetime.



smt machine production line 1





Company show

ETON over 10 years experience in SMT machines, have 52000 square meters industry park, professional R&D team and sales team; It is worth mentioning that stronger manufacturing capacity. Cause we have enough mechanical equipment, Experienced staff and engineer, get great support. Ensure the machine is high quality.



placement machine company



Honor customer

Many domestic and foreign customers to reach a long-term cooperation with ETON. ETON is Top brand of SMT machine in China, Got large more than 80% big led lighting industry market;

Our products are exported to more than 20 countries & regions, Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, IranVietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.

customer pick and place machine
