Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*2500 | Total Weight: | 2500kg |
|---|---|---|---|
| PCB Length Width: | MAX:450*300mm MIN:80*80mm | PCB Thickness: | 0.1-6mm(if<0.6mm, Need Jig) |
| No.of Camera: | 4pcs | Mounting Speed: | 80000CPH |
| No.of Feeders Station: | 64pcs | No.of Head: | 20pcs |
| Power Consumption: | 6kw | XYZ Axis Drive Way: | High-end Magnetic Linear Motor |
| High Light: | Vision Camera placement machines,80000 CPH placement machines,80000 CPH surface mount device |
||

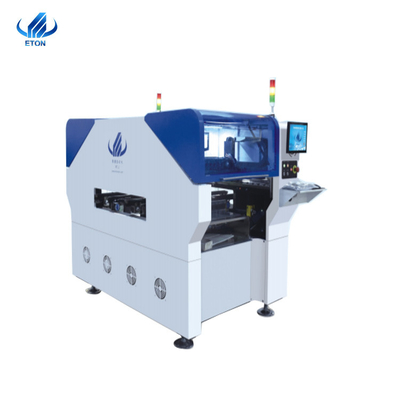

Vision Camera placement machines 80000 CPH surface mount device
80000 mounting speed high precision vision camera pick and place machine
Multi-function placement machines are also called high-precision placement machines or general-purpose machines, which can mount high-precision large and special-shaped components. They can also mount small chip components, which can cover almost all component ranges, so they are called multiple Functional placement machine.

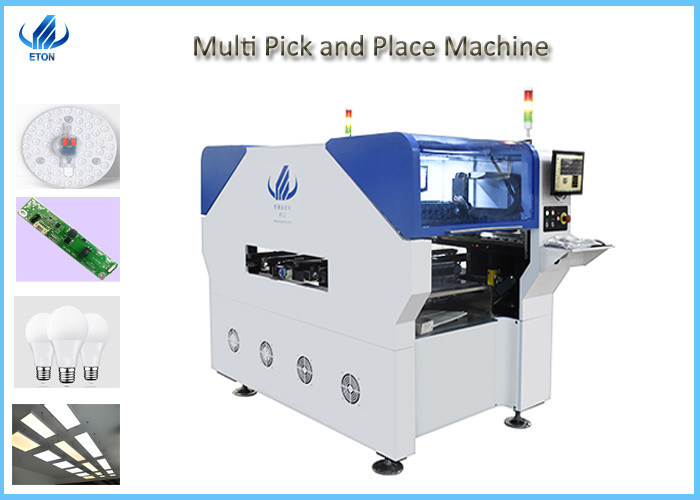

RT-2 pick and place machine, can mount kinds of components, LED Chip, capacitor, resistors, shaped components, Meanswhile, high precision, it can mount min size compents 0402.
For making product, have led lighting : led bulb, led display, led street light, led lens, etc, power driver, household appliance and so on.
This is Multi-funcational pick and place machine, own R&D team ensure the high quality, High-end magnetic linear motor ensure to high precision.
High mounting speed can reach 80000 CPH. improve productivity.
Electric feeder with double motor of feeding way, ensure quickly pick the components.
The nozzle have 20 pcs and feeders station 64 pcs, can improve the mouting speed.

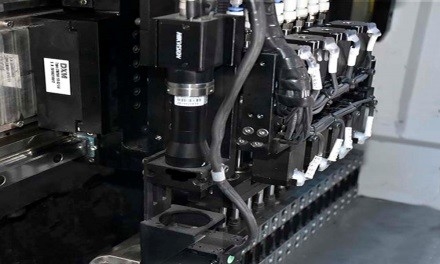

Vision Camera can mark correction, and Vision aligment flight identification, make quick and correct mounting components.
Software Independently research and development by ETON, update software can free for customer.
| Model | RT-2 |
| Dimension | 1200*1930*2500 |
| Total weight | 2500kg |
| PCB length width | MAX:450*300mm MIN:80*80mm |
| PCB thickness | 0.1-6mm(if<0.6mm, need jig) |
| PCB clamping | pneumatic |
| Mounting mode | group picking and separately placing, separately picking and separately placing. |
| System | windows 7 |
| software | R&D independently |
| No.of camera | 4pcs |
| accurate imge recognition | |
| vision alignment, mark correction | |
| mounting speed | 80000CPH |
| components | LED chip, capacitors, resistors, IC, shaped componets. etc. |
| components space | 0.2mm |
| No.of feeders station | 64pcs |
| No.of head | 20pcs |
| power | AC 380 V |
| Power consumption | 6kw |
| operating environment | 23±3℃ |
| transmission speed | ≤1000mm/sec |
| Air supply | 0.4-0.6mpa,4-6kgf/cm²,300N/Min |
| electrical control | independent research and development by eton |
| Feeding way | electric feeder with double motor. |
We can provide SMT whole line production line solution to customer.
Strong manufacturing capacity, 52000 square meters Indusrty Park.
Five star service, From pre-sale to after sale, One year warranty.
Local engineer in India, Egypt, Turkey, which can provide you with the greatest convenience. such as quick free installation and Training.
Over 10 years experence in SMT machines, Professional R&D team ensure to high quality machine.
High speed or multi-funcional pick and place machine serises, stencil printer and dispenser machine, also have conveyor, loader, uploader, etc.
ETON got many honor, Shenzhen High-tech enterprise, Guangdong high-speed enterprise, China high-tech enterprise, Shenzhen Top Brand, 2015 LED Technology Innovation Award, The 4th China LED First Innovation Award, etc.
