| Dimension: | 1200*1930*2500 | Total Weight: | 2500kg |
|---|---|---|---|
| PCB Length Width: | MAX:450*300mm MIN:80*80mm | PCB Thickness: | 0.1-6mm(if<0.6mm, Need Jig) |
| No.of Camera: | 4pcs | Mounting Speed: | 80000CPH |
| No.of Feeders Station: | 64pcs | No.of Head: | 20pcs |
| Power Consumption: | 6kw | XYZ Axis Drive Way: | High-end Magnetic Linear Motor |
| High Light: | 6kw smt pick and place machine,6kw SMT Mounting Machine,80000 CPH Pick And Place Machine |
||

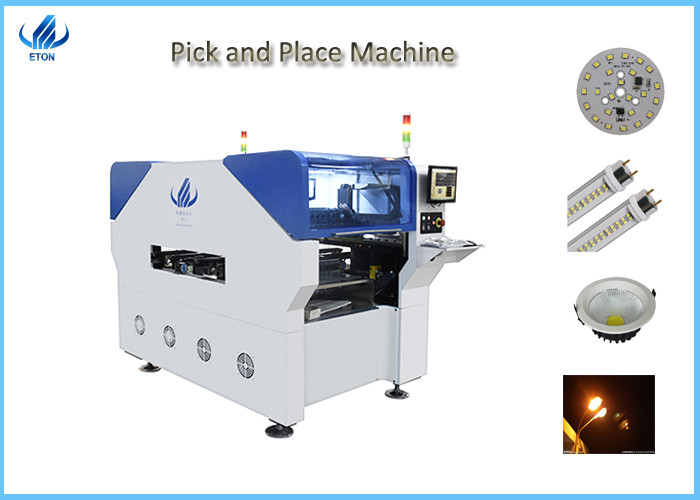

6kw SMT Mounting Machine Magnetic Linear Motor Pick And Place Machine
0402 component high precision high end magnetic linear motor pick and place machine
SMT placement machine model structure:
Medium-speed placement machines mostly adopt arch structure, relatively speaking, the structure is relatively simple, the area is small, and the requirements for the environment are low.
High-speed placement machines are mostly modular design (the turret structure of more than 10 or 20 years ago has been discontinued and eliminated by the times).
Doulbe module multi-funcaion high precision pick and place machine, Double rail, can work together, also can work separately; apply to led light, cause high precision, can mount led display, led driver, lens, etc.
Software: Independent research and development by ETON, free upgrade whole lifetime, saving costs.
Automatic replenishment: If there is material missing or throwing,can fully-automatic material replenishing to save labor.
Camera recognition system: vision camera, flight identification, Mark automatic correction,Auto-optimization after coordinates generated, to ensure high mounting precision.
It is applicable to the wider range of components, and can be mounted with resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.
Feeders: Electric feeder with double motor, to ensure more stable and accurate feeding.
| Model | RT-2 |
| Dimension | 1200*1930*2500 |
| Total weight | 2500kg |
| PCB length width | MAX:450*300mm MIN:80*80mm |
| PCB thickness | 0.1-6mm(if<0.6mm, need jig) |
| No.of camera | 4pcs |
| accurate imge recognition | |
| vision alignment, mark correction | |
| mounting speed | 80000CPH |
| components space | 0.2mm |
| No.of feeders station | 64pcs |
| No.of head | 20pcs |
| power | AC 380 V |
| transmission speed | ≤1000mm/sec |
| transmission direction | single(left to right or right to left |
| Air supply | 0.4-0.6mpa,4-6kgf/cm²,300N/Min |
| electrical control | independent research and development by eton |
| Motion control card module 1 set | independent research and developmet by eton |
| Feeding way | electric feeder with double motor. |
Pre-sale
SMT production line solution, and some advice based on customer requirement. share the ETON industry park to customer.
On-sale
Follow the machine product, take the photo or video to customer. and other requirment.
After-sale
Free install machine and training.
Free Software Upgrade,Offer free software upgrade whole lifetime.
Free Warranty &Free Technical Support.
One year warranty factory service 7*24 hours technical online support.
Full automatic smt line, the pcb on Loader, transport by conveyor, printing pcb on board by stencil printer, mounting the components on pcb by pick and place machine, finished the product, in to reflow oven, the pcb into Unloader.
Multifuncaional pick and place machine, can mount many kinds of components, For example, Electric, Diode, Led chip, Bridge recifiers, step-up transformer, shaped components, etc.
