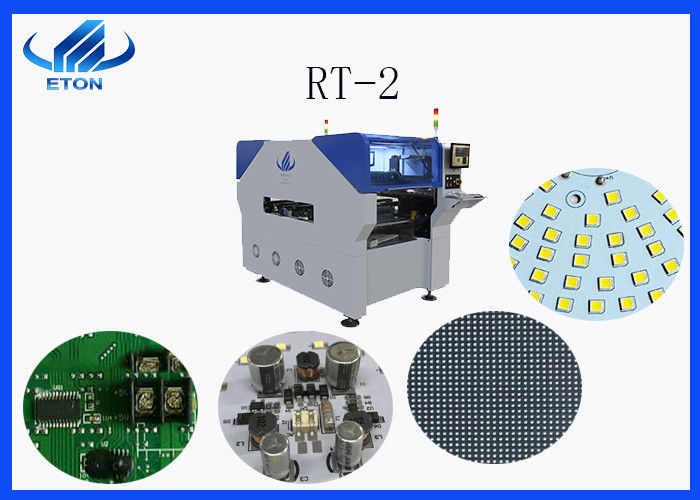

80000 CPH Pick And Place Machine LED SMT Mounter Production Line

80000 CPH Pick And Place Machine LED SMT Mounter Production Line
80000 CPH Pick And Place Machine LED SMT Mounter Production Line

Large Image :  80000 CPH Pick And Place Machine LED SMT Mounter Production Line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE
Model Number: RT-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Unit
Price: USD 67000-75000 Unit/Units
Packaging Details: Vacuum packing in wooden case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 50 Unit/Units per month
Contact Now
Detailed Product Description
Dimension (L*W*H): 1200*1930*1500mm Total Weight: 2500kg
PCB Length Width: Max:450*300mm Min:80*80mm PCB Thickness: 0.1-6mm(If<0.6mm Need Jig)
PCB Clamping: Pneumatic No.of Feeders Station: 64 PCS
No.of Head: 20PCS Mounting Speed: 80000 CPH
Power: AC 380 V Operating Environment: 6 KW
High Light:

80000 CPH Pick And Place Machine

,

80000 CPH LED SMT Mounter

,

AC380V led Pick And Place Machine

80000 CPH Pick And Place Machine LED SMT Mounter Production Line



80000CPH multifunctional pick and place machine RT-2 LED SMT Mounter LED Production Line



Product Description

Dimension (L*W*H)
1200*1930*1500mm
Total weight
2500kg
PCB Length width
Max:450*300mm Min:80*80mm
PCB thickness
0.1-6mm(If<0.6mm need jig)
PCB clamping
pneumatic
No.of feeders station
64 PCS
No.of head
20 PCS
Mounting speed
80000 CPH
Power
AC 380 V
Operating environment
6 KW



Features

1. with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
2. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3. It's intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc
4 .Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 0



80000 CPH Pick And Place Machine LED SMT Mounter Production Line 1

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 2

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 3

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 4

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 5



Pcaking&Shipping

80000 CPH Pick And Place Machine LED SMT Mounter Production Line 6



FAQ

1. What is the approximate delivery time?
Delivery time is 30 days


2. What kind of service I can have, if I buy machine from ETON ?
We will arrange training and study for engineers free of charge

3. What's about the guarantee of the machines?
The maintenance:during warranty,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.

4. Is the machine difficult to operate?
The machine uses English and Chinese interface, very simple and easy to operate, and the machine supports remote control .

5. What are the main LED products o our machines for?
There are different machines in our company and different machines apply to different LED lights. The main products we can apply: bulb,tube strip lamp panel. Down light, street light, ceiling light. wall washer light and so on.
