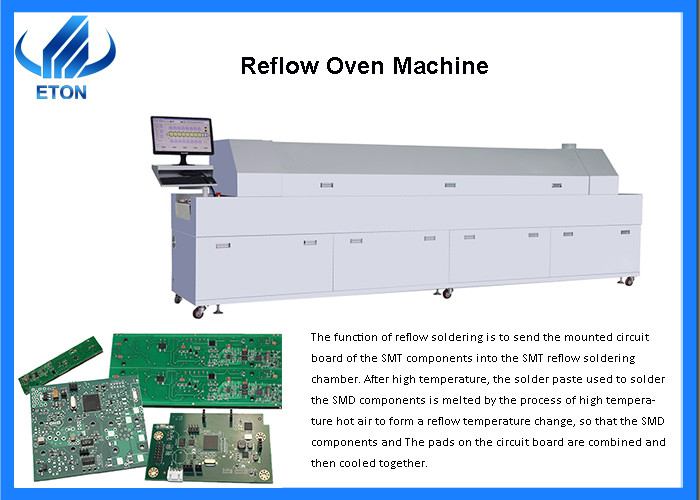

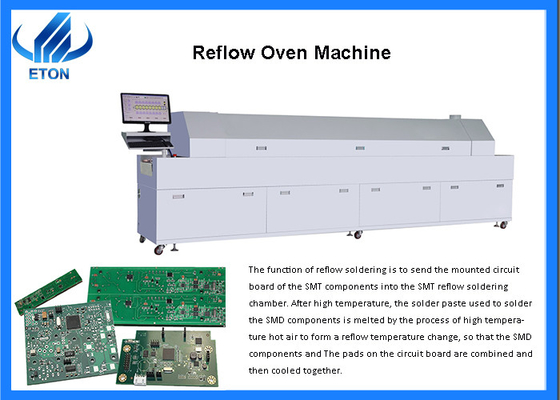

3 Phase Smt Reflow Oven Soldering Machine Surface Mount Soldering Oven

3 Phase Smt Reflow Oven Soldering Machine Surface Mount Soldering Oven

SMT Machine Production Line

Loader-Stencil printer machine-Pick and place machine-Oven machine

Automatic and semiautomatic line

The big difference between automatic line and semiautomatic line is the stencil printer machine, Automatic stencil printer machine is send board automatically, save labor. But no matter automatic line or semiautomatic line all using same reflow oven soldering machine.

Application

Due to the continuous miniaturization of electronic product PCB boards, chip components appear, and traditional soldering methods can no longer meet the needs. At first, only the reflow soldering process was used in the assembly of hybrid integrated circuit boards, and most of the components to be assembled and soldered were chip capacitors, chip inductors, mounted transistors and diodes. With the development of the entire technology of SMT becoming more and more perfect, and the emergence of a variety of chip components (SMC) and mount devices (SMD), the reflow soldering process technology and equipment as part of the placement technology has also been developed accordingly, and its application is becoming more and more extensive. It has been applied in almost all fields of electronic products.

Main parameter of reflow soldering machine

Machine dimension: 4600*900*1400 mm

Machine weight: 1600 kg

Temperature control method: PID control+ SSR drive

Heating time: About 15 minutes

Temperature control range: Room temperature~350℃

Power supply: 5 line 3 phase 380v 50/60hz

Number of heating zones: Upper 8 hot air heating, lower 8 hot air heating

Length of heating zone: 3000 mm

Pcb maximum width: 400mm(mesh)

Main features

1. Adopting imported high-speed air-carrying motor direct drive for thermal cycle, low noise, low vibration and high thermal cycle efficiency.

2. The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning.

3.Using PLC control, the temperature control is stable and accurate, and the temperature of each temperature zone is individually controlled.
