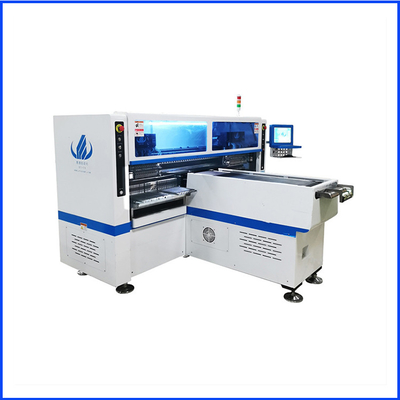

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll
250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll

Large Image :  250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Unit
Price: USD 65000-90000 Unit/Units
Packaging Details: Vacuum packing in wooden case
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 50 Unit/Units per month
Contact Now
Detailed Product Description
Dimension (L*W*H): 3100*2300*1550mm Total Weight: 1700KG
PCB Length Width: 250mm*any Length PCB Thickness: 0.5-1.5mm
PCB Clamping: Vacuum Adsorption, Cylinder Splint, Adjustable Track Width No.of Feeders Station: 68 PCS
No.of Head: 68 PCS Mounting Speed: 250000 CPH
Components: LED3014/3020/3528/5050、Capacitance, Resistance, Bridge Stack, Etc Operating Environment: 6 KW

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll





Product Description

Dimension (L*W*H)
3100*2300*1550mm
Total weight
1700kg
PCB Length width
250mm*any length
PCB thickness
0.5-1.5mm
PCB clamping
Vacuum adsorption, cylinder splint, adjustable track width
No.of feeders station
68 PCS
No.of head
68 PCS
Mounting speed
250000 CPH
Components
LED3014/3020/3528/5050,Capacitance, resistance, bridge stack, etc
Operating environment
6 KW





1. Producing with 4 types materials same time with high capacity, avaible for 5M,50M,or any length flexible strip and Roll to Roll.
2. Dual arm four module,17 nozzles for each mounting part .There are 68 PCS feeders station and 68pcs heads.
3. Mounting speed reach 250000 CPH.
4. Calibration automatically, high precision,available for RGB.
5. suitable for any length flexible strip, this is a machine specializing in the production of flexible strips.

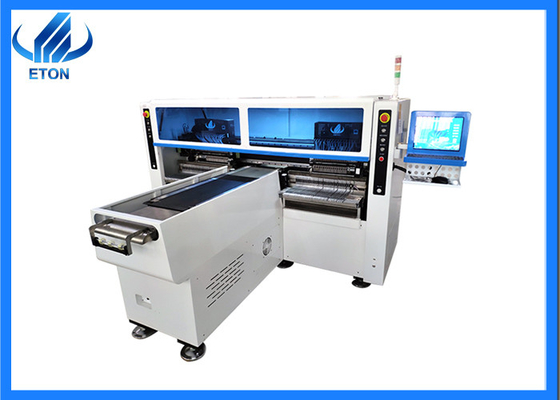

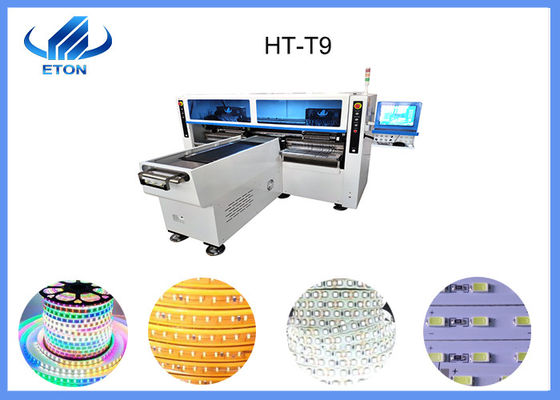

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 0

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 1

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 2

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 3

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 4



Packing & Shipping

250000CPH pick and place machine avaible for 5M 50M or any length of Flexible strip and Roll to Roll 5



FAQ

Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.


Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..

Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.

Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program.

Q: why should you buy from us not from other suppliers?
A: We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have richexperience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
