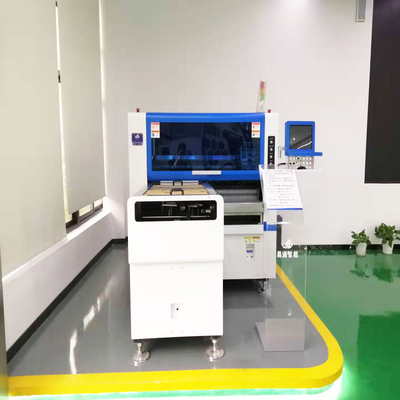

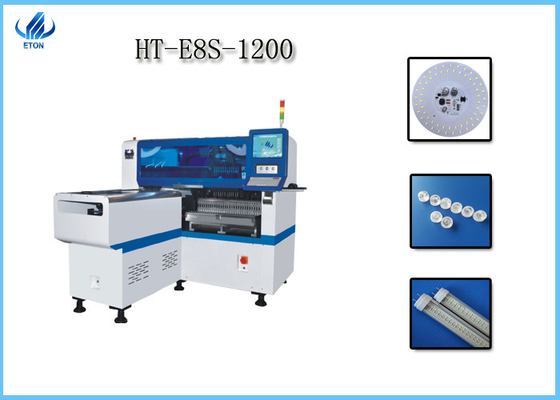

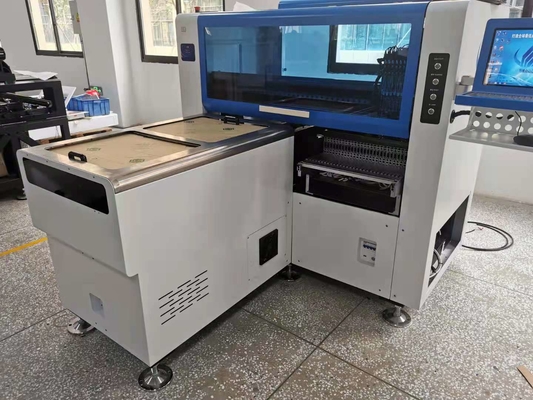

Led lens production 12 pcs head Magnetic linear motor pick and place machine

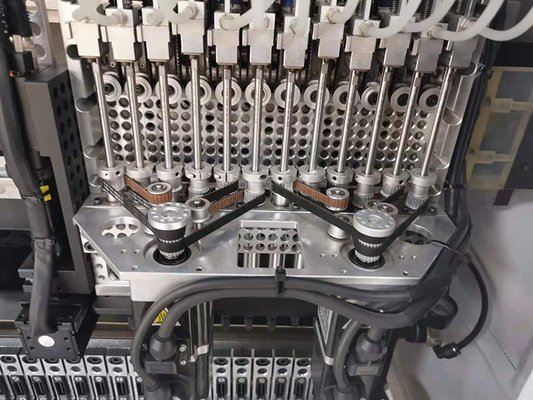

Head Assembly of Pick and Place Machine:

Working head assembly: move in the XY direction (or X direction), pick up parts from the feeder and mount on the PCB.

Movement Handle of the work head assembly: When the servo control is released, you can move in each direction with your hand. This handle is usually used when moving the work head assembly by hand.

Application

Multi-funcational pick and place machine, Wide-use for led bulb, DOB, drivers, Lens, downlights, etc., full functioning. can mount kinds of components, led chip, resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.

Production Introduction

This Machine have vision system, Auto-optimization after coordinates generated, Automatic replenishment, High-end magnetic linear for X/Y axis; OEM/ODM is ok.

Features

• Widly application: bulbs, DOB, drivers, Lens, downlights, etc.,with complete functions.
• The X/Y axis uses high-end magnetic linear motor, which has higher accuracy and faster speed.
• Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.
• Main parts: rails-Imported from Japan THK/Synchronous belt-Imported from Japan MBL/ drag chains-Imported from Germany IGUS .
• Feeders: Electric feeder with double motor, to ensure more stable and accurate feeding.

Technical Parameter

Advantge

ETON Headquartered in Shenzhen, 50000 square meter industry park in Jiangxi, have stronger manafacturer. support oem and odm; show the history to you.

We have professional team(R&D, SALES, SERVICE TEAM ), provide high quality machine and high service to customer.

Also provide smt production whole line solution. According to customer factory layout and requirment, make suitable smt line to customer, save the cost.

FAQ

What is your delivery date?

The delivery date is about 20 days upon the full payment

What is your payment terms?

100% payment before delivery or 50% deposit in advance and the rest before shipment.

How is the warranty?

A.Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.

B.The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.

C.We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

How can I buy this machine from you?

A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.

Do you have any customers in India? How many machines are there in India?

Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc.

We have sold over a hundred machines to India and we go to the exhibition every year.
