Product Details:
Payment & Shipping Terms:
|
| Dimention(mm): | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | 0.1-6mm (if＜0.6mm Need Jig) |
| Mounting Precision: | ±0.04mm | Mounting Speed: | 40000CPH |
| No.of.feeders System: | 32PCS | No.of .head: | 10PCS |
| Components: | LED Chip, Capacitors, Resistors, IC, Shaped Componets. Etc. | Feeding Way: | Electric Feeder With Double Motor. |
10pcs nozzle head
40000 cph mounting speed
2pcs camera

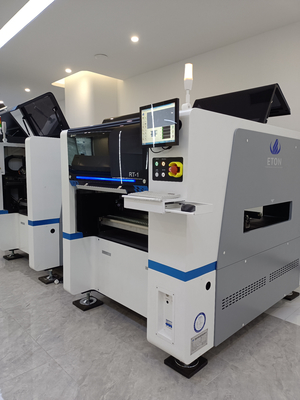

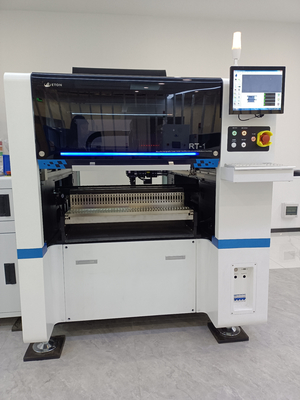

The Pick and place machine is the placement equipment used in the production of SMT. Now, the placement machine has developed from the early low-speed mechanical placement machine to the high-speed optical centering placement machine, and to the multi-functional and flexible connection Modular development.
Each nozzles control by each servo motor, ensure mounting so precision and highspeed.
Magnetic linear motor is good for mounting head move, more correct and quickly. ensure the machine have long life.
Wide-use, this machine can making led bulb, DOB bulb, led display, led tube, power driver, etc.
The MAIN Part is from well-known brand, such as Grating scale imported from UK RENISHAW, The electromagnetic valve Imported from Japan SMC, etc.
Vision camera, mark correction, vision alignment flight identification.

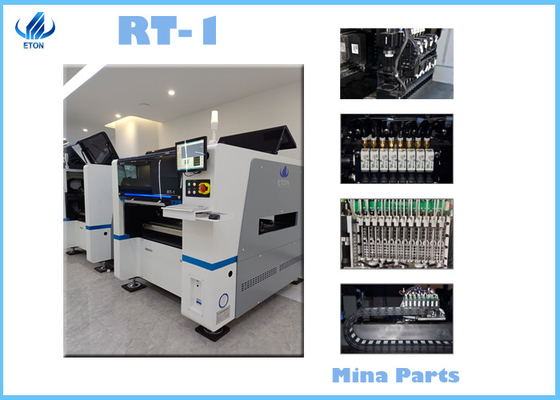

| Model | RT-1 |
|---|---|
| PCB length width |
MAX:450*350mm MIN:80*80mm |
| System | windows 7 |
| No.of camera | 2PCS |
| Components | LED chip, capacitors,resistor,shaped components, etc. |
| No.of head | 10PCS |
| No.of feeders station | 32PCS |
| Feeding way | electric feeder with double motor |
| XYZ Axis drive way | 1200*1930*1500 |
| Dimension | High-end magnetic linear motor+servo-motor |
Many kinds of led lights, RT-1 suitable for it. mouting componets on PCB board, components have led chips, capacitors, resistors, IC, shaped componets, etc. this machine can make led bulb, linear bulb, DOB bulb, display, panels, tube, street lights, and so on.
Many domestic and foreign customers to reach a long-term cooperation with ETON, show the customer factory to you.
LED strip light production line, the machine is highspeed pick and place machine, The fastest machine, can reach 25W CPH.
LED display, bulb, lens production line, Multi-funcatonal pick and place machine, such as RT-1, E8S, Electric feeder with double motor.
ETON got large more than 80% big led lighting industry market in China. Exported to more than 20 countries & regions.
ETON is a manufacturer,over 50000 square meter Inustry Park, has stronger Manufacturing capacity, provide smt line solution, focusing on R&D, production, sales and service of SMT high-speed /Multi-funcational pick and place machine and SMT peripheral automatic equipment.
ETON SMT peripheral Machine in the below, also have placement machine, high quality and intelligent machines;
provide smt production line solution based on customer factory area.
Improve the product quality and production efficiency.
Do you have local clients and customer in India?
Yes, we have. Share a few of our representative customers to you: SURYA, CEPL, POLICAB, FIEM,CALCOM, NTL, RK.
What about your Delivery time?
ETON is big company, Industry park over 50000 square meter, stronger Manufacturing capacity, some machine is in stock.
if the machine is in stock, we can arrangment delivery immediately after get customer payment.
Since it is a fully automatic printing machine, how do you add solder paste and change the stencil?
You still have to manually add solder paste and change the stencil. Fully automatic does not refer to this aspect,
but after you set the program (such as: the length and width of the track, the angle of the scraper, etc.),
the printing machine can automatically perform Printing, without manual loading and unloading etc.
What machine can I buy from you?
Multi-function pick and place machine, high-speed pick and place machine, dispensing machine, loader machine, stencil printer , reflow oven, etc.
I want to produce led display, does your machine suitable for produce this product?
Yes, we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc
