Product Details:
Payment & Shipping Terms:
|
| Dimention: | 2550*1650*1550 | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max：1200*500mm Min：100*100mm | PCB Thickness: | 0.5-5mm |
| System: | Windows 7 | Software: | R&D Indepentently |
| No.of Camera: | 2 Sets Of Imported Camera | Mounting Speed: | 45000CPH |
| Components: | LED Chip, Capacitors, Resistor, IC, Shaped Components.etc. | Electrical Control: | Indepentent Research And Development By Eton. |
Pick and place machine is actually a fine industrial robot. It fully utilizes the high-tech effects of modern fine machinery, electromechanical integration, photoelectric combination, and computer control technology to complete high-speed, high-precision, and intelligent electronic assembly production equipment. According to the assembly technical requirements and the manufacturer's design philosophy, people have launched placement machines with different functions, different uses, and different grades.

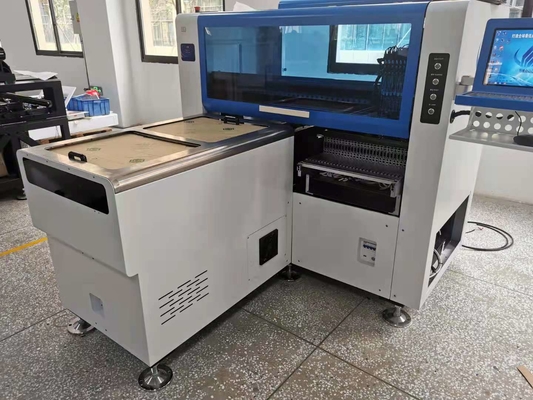

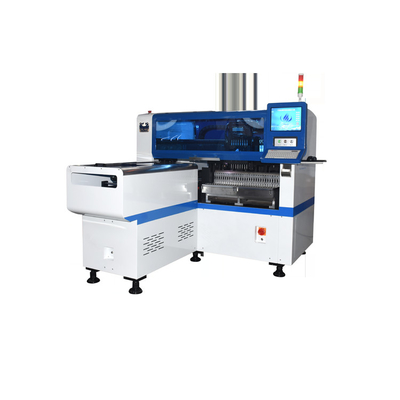

ETON E8S mounter is so hot, mounting driver, power, lens, chips, capacitors, IC and so on. This is high quality and multi-funcational.
Support customization: OEM/ODM. Strong R&D and manufacturing capabilities. 52000 square meter industrypark.
This type has updaed many generations, have more stability.
It can be applied to many high DOB components and has wider range of applications.
Fully-automatic material replenishing to save labor by automatic replenishment.
Strong manufacturing capability, some machine is in stock.

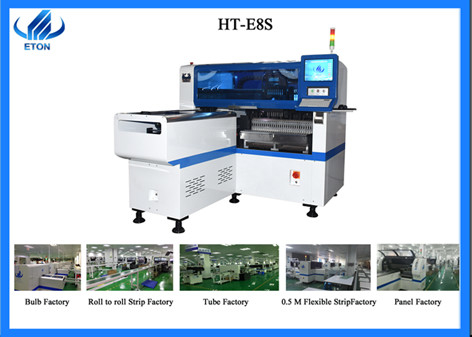

| Model | HT-E8S-1200 |
| Dimention | 2550*1650*1550 |
| Total weight | 1700kg |
| PCB length width | Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |

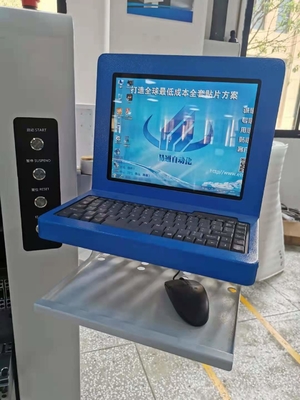

| system | windows 7 |
| software | R&D indepentently |
| No.of camera | 2 sets of imported camera |
| vision for flight identification, mark correction | |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| Components | LED chip, capacitors, resistor, IC, shaped components.etc. |
| no.of.feeders system | 28PCS |

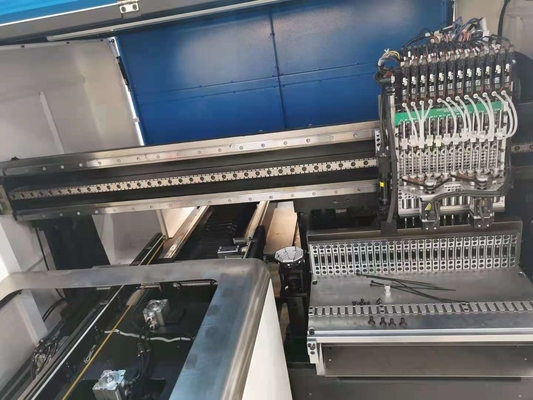

| no.of .head | 12PCS |
| Feeding way | Electric feeder with double motor |
Share the E8S SEMI automatic production line to you. one step, printing pcb board on stencil printer.(need use solder paste), pcb board transport to next step by conveyor, Two step, pick and place machine mounting the components( chip, capacitor, driver, resistors, lens, IC,etc) to PCB, pcb board transport to reflow oven by conveyor. Three step, Reflow oven heating the PCB board.
ETON set up 11 years, we are leading manufacturer of SMT machine in China.
ETON have 52000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
ETON R&D Global first automatic stencil printer machine for roll to roll 100 m led strip light.
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.
Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
