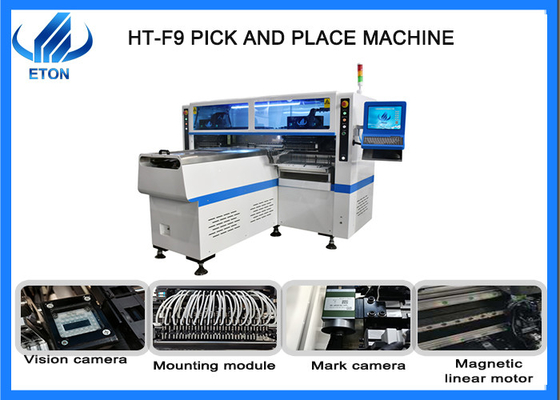

Apply to 1.2 M rigid PCB and 1 M LED flexible strip with 250000 capacity led high- speed mounter machine
Production discription
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with 250000 CPH capacity, available for board with any proportion of LED chip and resistor.
- Owing an exclusive technology of group picking and group placing, PCB size is 1200*330 can mount LED 3014/3020/3528/5050 or resistor, capacitor and bridge rectifiers, etc.
Features
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group to take and group to mount.
- IPC9850 capacity: 200000-250000 CPH
Machine parameter
| Model |
HT-F9 |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
200000-250000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
68PCS |

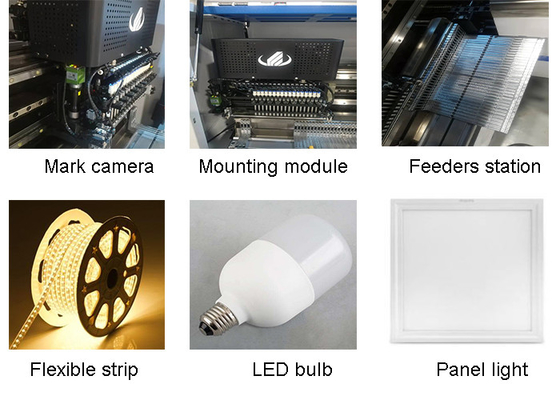

Application
Company profile
SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
ETON was founded in 2011, is a company that keen on manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place and SMT peripheral automation equipment.
Experiences:
- Focusing on SMT pick and place machine more than 10 years
- The products exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
- ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
Our exhibition
Owing to the COVID-19 we have no time to hold an exhibition aboard, yet we believe the virus will pass in a visible trend with protecting ourselves from the crowd and coordinating with the policy of our countries and governments, and hoping to participating in more exhibitions of the world as we are able to hold the exhibition.
Here are the exhibition that we attended from the previous period in some countries as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Packing and delivery
FAQ
Q1. What is your merits of the machine to others production?
A1. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 50000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
Q2. If I need a perfect line of the machine can you supply?
A2. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q3. How was your services?
A3. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q4. Can you accept D/P or D/A as the payment term?
A4. For our regular payment terms, we usually use T/T.
Q5. How can I contact you to buy the goods in an efficient way?
A5. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
