Product Details:
Payment & Shipping Terms:
|
| Name: | HT-F9 | Dimension: | 2700*2300*1550mm |
|---|---|---|---|
| Weight: | 1700kg | PCB Length Width: | Max 1200*330mm Min 100*100mm |
| PCB Thickness: | 0.5-5mm | Brand: | ETON |
| Operating Environment: | 23±3℃ | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | 250000 CPH LED SMT Mounting Machine,68 Heads SMT Mounting Machine,250000 CPH led light production machine |
||

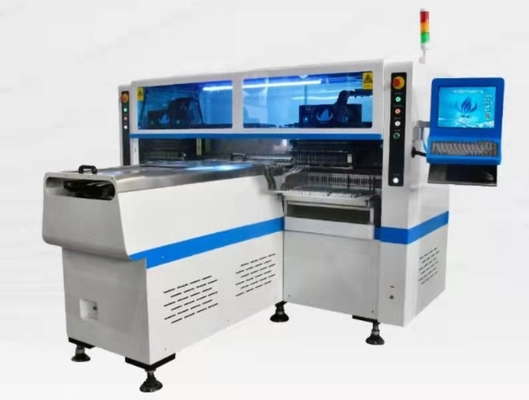

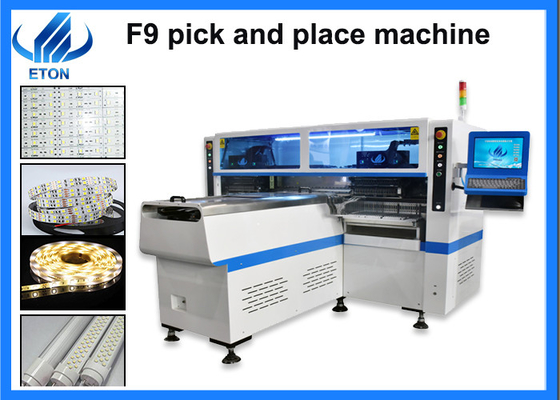

68 heads with 250000 capacity mounting for flexible strip HT-F9 pick and place machine
Products Description:
1. Dual arm magnetic linear motor LED high-speed pick and place machine
2.PCB Length Width: max 1200*330mm min 100*100mm
3. No. of feeders station: 68PCS
4.No.of nozzles:68PCS
5. Mounting components: LED 3014/ 3020/ 3528/ 5050 and capacitor, resistor, bridge rectifiers,etc.
Products features:
1. Dual arm magnetic linear LED high-speed pick and place machine
2. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
3. Dual arm four module, 18 nozzles for each mounting part, part A/B/C/D can be mounted separately synchronously.
4. Calibration patent technology: group to take and group to mount.
Machine parameter:
| HT-F9 | |
| Length*Width*Height | 2700*2300*1550mm |
| Weight | 1700kg |
| Components space | 0.5mm |
| No.of feeders station | 68pcs |
| No.of nozzles | 68pcs |
| Power consumption | 6kw |
| Operating environment | 23℃±3℃ |
Application
The machine can produce rigid PCB , flexible strip and other products, suitable for mounting LED chip, resistor, capacitor and bridge rectifiers, etc.

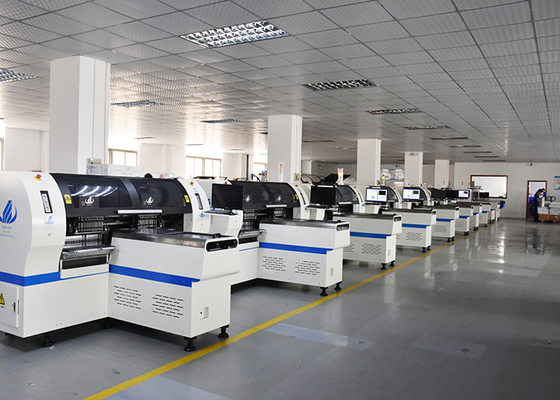

Company Introduction:
Transportation and Package
Our products are packed in vacuum wooden cases. And every process of packaging is carefully completed by our professional packaging staff to ensure that customers can receive complete products.
Service
FAQ
Q: Is hard to use these machines?
A: No, not at all. All our machine are automatic, you just type in the program and it will work. The operation is relatively simple and I believed that certainly learn in two days.
Q: Is the software for these machine in English?
A: Yes. Our software is independently developed, there are two version in English and Chinese.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: How can I buy this machine from you?(Very easy and flexible!)
A: Consult us about this product online or by e-mail.
B: Negotiate and confirm the final price,ship, payment methods and other terms.
C: Send you the proforma invoice and confirm your order.
D: Make the payment according to the method put on proforma invoice.
E: We prepare for your order in term of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F: Send your order by air or by sea.
