Product Details:
Payment & Shipping Terms:
|
| PCB Length Width: | Max:450*300mm Min:80*80mm | PCB Thickness: | 0.1~6mm (if <0.6mm Need Jig) |
|---|---|---|---|
| PCB Clamping: | Pneumatic | Mounting Mode: | 1.Group To Pick And Separate To Place 2.Separate To Pick And Separate To Place |
| Software: | R&D Independently | Mounting Speed: | 80000CPH |
| No.of Feeders Station: | 64 PCS | No.of Nozzles: | 20 PCS |
| High Light: | 80000CPH Desktop Smt Pick And Place Machine,SIRA Smt Pick And Place Machine,80000CPH led pick and place machine |
||

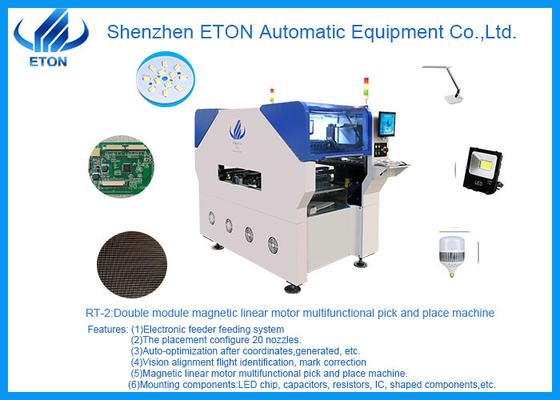

Multifunctional Desktop Smt Pick And Place Machine 80000CPH Double Module
80000CPH full-automatic machine double module magnetic linear motor multifunctional pick and place machine
1. Introduction of products
Double module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip, capacitors, resistors,IC, shaped components, etc.
The machine use an electronic feeder feeding system.
The speed can reach 80000CPH.
It has 68 PCS feeders stations to work.
The PCB max size is 450*300mm.
2. Features
Magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors, resistors, IC, shaped components,etc.
Electronic feeder feeding system
Vision alignment flight identification, Mark correction
Auto-optimization after coordinates generated ,etc.
The speed can reach 80000CPH.
3. Machine parameter
| RT-2 | ||
| PCB | PCB length width | Max:450*300mm Min:80*80mm |
| PCB thickness |
(if <0.6mm need jig) |
|
| PCB clamping | Pneumatic | |
| Mounting mode |
1.Group to pick and separate to place 2.Separate to pick and separate to place |
|
| O.S. | System | Windows 7 |
| Software | R&D Independently | |
| Vision system | No. Of camera |
4 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 80000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No.of feeders station | 64 PCS |
| No.of nozzles | 20 PCS | |
4.Product application
5. Company introduction, exhibition, certificate
6. Package and delivery
All machines shipped abroad will use foam packaging to protect the machines from collisions;
* Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
* Vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
* Use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
* Each export machine will be equipped with a strong export-free wooden box;
7. Service
we will send our engineer to your factory to install machine and training freely.
We have service office in India,and have Indian engineer in Delhi and Mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

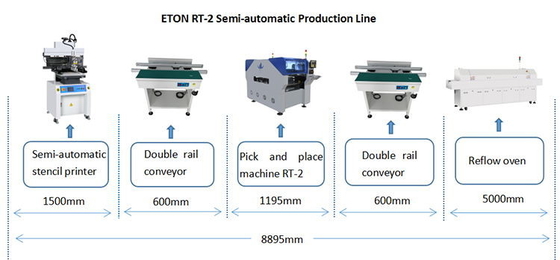

We can provide the SMT line solution:
1. We provide full SMT solution for you;
2. We provide core technology with our equipment;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.
Five-star services:
Professional solutions:provide professional SMT full line solutions.
Free warranty:One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free technical support:7*24 technical online support.
Free software upgrade:offer free software upgrade whole lifetime.
8. FAQ
(1)It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
(2)What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
(3) Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
(4)What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
(5)Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
