Product Details:
Payment & Shipping Terms:
|
| Dimention(mm): | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | 0.1-6mm (if＜0.6mm Need Jig) |
| Mounting Precision: | ±0.04mm | Mounting Speed: | 40000CPH |
| No.of.feeders System: | 32PCS | No.of .head: | 10PCS |
| Components: | LED Chip, Capacitors, Resistors, IC, Shaped Componets. Etc. | Feeding Way: | Electric Feeder With Double Motor. |
| High Light: | 40000CPH SMT Mounting Machine,ODM ODM SMT Mounting Machine,40000CPH led chip mounting machine |
||

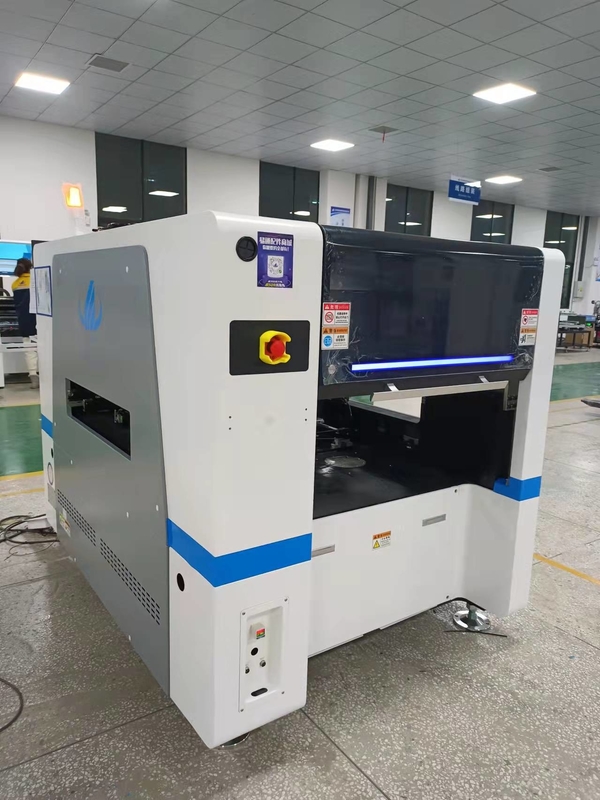

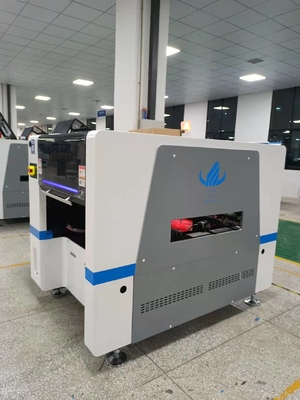

40000CPH SMT Mounting Machine Double Motor For Led Panel Light
New design high precision of led panel light produce machine SMT mounter
Pick and place machine is the important in SMT Production line, others machine work together, let's intruduce the stenicl printer,
The SMT solder paste printer is a device that prints solder paste onto the PCB. It is the device that has the greatest impact on the process and quality.
Simple operation, fast printing speed, simple structure, the disadvantage is that the printing process parameters are less controllable,
the printing centering accuracy is not high, and the solder paste is poorly released.
1. Control Syetem: Widows 7, softwear by ETON.
2. Free to upgrade software and provide technology support for life
3.Placement heads 10pcs, drive by servo motor
4.Vision system, vision alignment , correct by mark camera.
5. Make you operate machine easily, easy to use interface.
| Model | RT-1 |
| Placement heads | 10 pcs |
| MAX PCB Size | 450*350mm |
| MIN PCB Size | 80*80mm |
| Components | LED chip, capacitors,resistor,shaped components, etc. |
| MIN PCB Size | 80*80mm |
| XYZ Axis drive way | High-end magnetic linear motor+servo-motor |
| Optimal speed | 40000CPH |
| Feeding way | electric feeder with double motor |
RT-1 pick and place machine, the important of advantage: can apply to many product, most customer need it,
from led bulb to led panels, downlight, lens, this type can do it with high precision.
1.ETON has invented the fastest automatic pick and place machine with speed 250000CPH.
2.Over 11 years experiences, 52000 square meter indusatry park in Jiangxi, China.
3.Efficient team,Competitive price,High quality won the favor of many customers.
4.Supported with an excellent RD team ETON has strong ability to OEM and ODM for customers ,custom unique design for you with the best cost.
We provide you the friendly English User manual or operating videos for free.
Warranty: 1 year free, 2 regular visits customer one year.
Local service: We have India/Egypt/Turkey office.
......
Install the machine picture in the customer's factory.
| Do you have oversea after sale service? We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly. |
| It’s hard to use the machine? Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly. |
|
Why should you buy from us not from other suppliers? We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages. |
| What is your delivery date? The delivery date is about 20 days upon the full payment. |
| How is the warranty? 1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving. 2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service. 3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service. |
