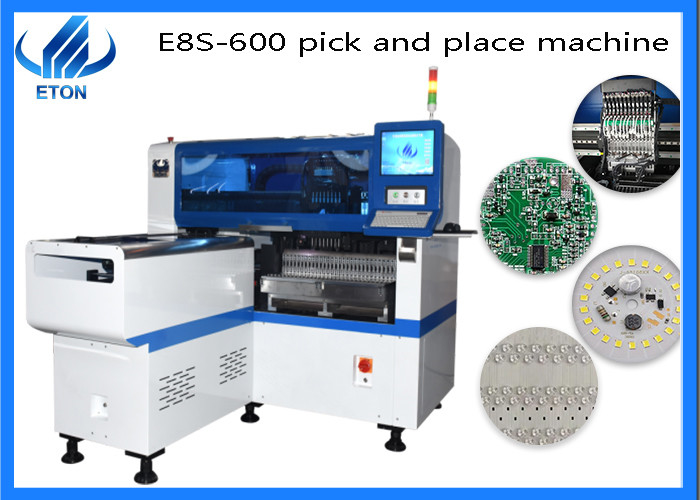

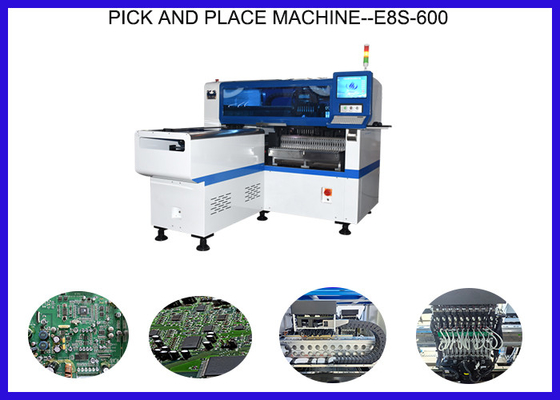

Single module component min size 0402 multifunctional pick and place machine
Product introduction
- Dimension:1550mm*1650mm*1550mm
- PCB length width: max 600*500mm min 100*100mm
- 2 sets of imported camera , with vision for the flight identification, Mark correction
- XYZ Axis drive way:high-end magnetic linear motor and servo motor
- High-speed pick and place machine
Product feature
- Single module magnetic linear motor multifunctional pick and place machine
- Mounting components: LED chip, capacitors, resistors, lens, IC, shaped components,etc
- Component: Min.size 0402 Max.height 15mm
- Application: Power drive, electric board, lens, DOB bulb, linear bulb, household application,etc
Machine parameter
| Length*Width*Height |
2550*1650*1550mm |
| Total weight |
1700kg |
| PCB thickness |
0.5-5mm |
| No.of camera |
2sets |
| Mounting precision |
±0.04mm |
| Mounting height |
<15mm |
| Component space |
0.2mm |
| Power consumption |
4kw |
| X,Y,Z Axis drive way |
High-end magnetic linear motor+servo motor |
Application
Suitable for mounting LED chip, capacitors, resistors, lens, IC, shaped components,etc
Mounting products such as power drive, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Company profile

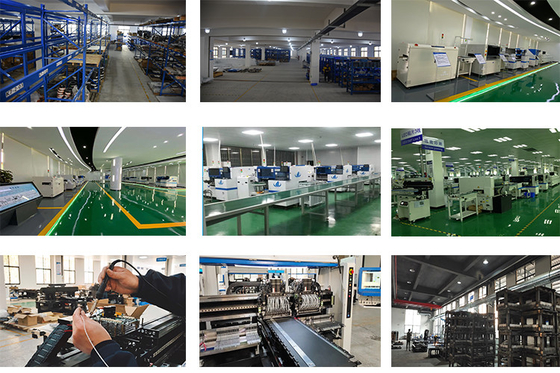

Shenzhen ETON Automatic Equipment Co.,Ltd, was founded in 2011, it is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Honours client
We have a lot of long-term clients like SURYA, Calcom, KONKA,TCL,Skyquro,etc.
Exhibition
Our company will participate in various exhibitions every year, such as Shanghai Munich Exhibition,Guangzhou Guangya Exhibition, Chongqing LED Exhibition, Thailand Exhibition, Turkey Exhibition, India Exhibition, etc.
FAQ
Q: Why do you choose our product?
- our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
- Software lifetime free upgrade
- Free installation and training
- Provide 1-2 times a year free for machine repair, after the warranty period.
Q: Is the machine free of charge?
A: Yes. Our warranty for the whole machine is one year, but in addition, we provide customers with free maintenance once or twice a year.
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
