Product Details:
Payment & Shipping Terms:
|
| PCB Length Width: | Max:600*500mm Min:100*100mm | PCB Thickness: | 0.5-5mm |
|---|---|---|---|
| PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Software: | R&D Independently | Mounting Speed: | 45000CPH |
| No.of Feeders Station: | 28 PCS Single Module | No.of Nozzles: | 12 PCS Single Module |
| High Light: | 450000 CPH LED Mounting Machine,SIRA Multifunctional LED Mounting Machine,28 Heads Smt Mounter Machine |
||

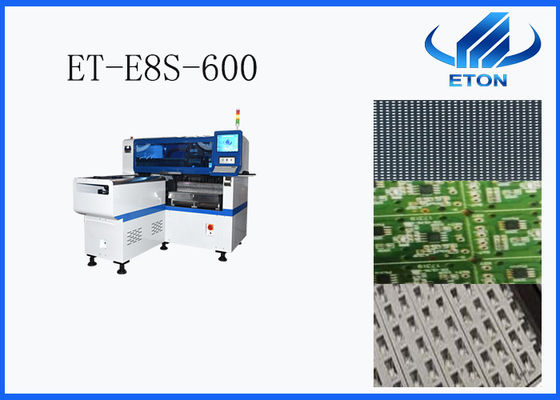

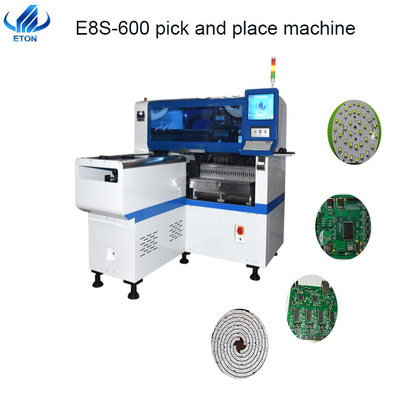

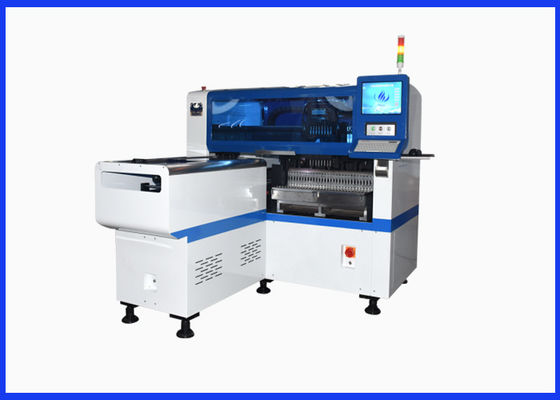

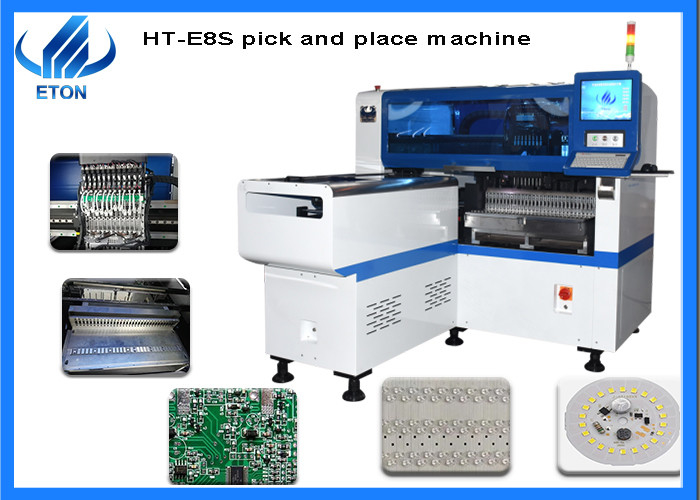

450000 CPH Multi-functional machine 28 heads pick and place machine
1.Introduction of product
Single module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
It has 2PCS cameras.
The max size is 600*500mm, the min size is 100*100mm.(Vision for the flight identification, mark correction)
2.Features
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Component: Min. Size 0402 Max. height 15mm.
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Vision alignment flight identification, Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.
3.Machine parameter
| E8S-600 | ||
| PCB | PCB length width |
Max:600*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separately placing,separately picking and separately placing | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
2 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 45000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 28 PCS single module |
| No. Of nozzles | 12 PCS single module | |
4.Product application
5.Company introduction, certificate
6.Package and delivery
7.Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
8.FAQ
(1)What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
(2)Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
(3)Are you a reliable cooperator?
Yes, we specialized in SMT parts over more 10 years in Shenzhen China. We participated in many exhibitions in abroad and domestic. We have a more 50000㎡industrial park, total 7 building and 300-500 employees. We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. And our high speed machines’ speed can reach 250000CPH, broken the world record.
(4) what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
(5)Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
