Electric feeder with double motor feeding way for led components with 90000 cph SMT machine
Product introduction

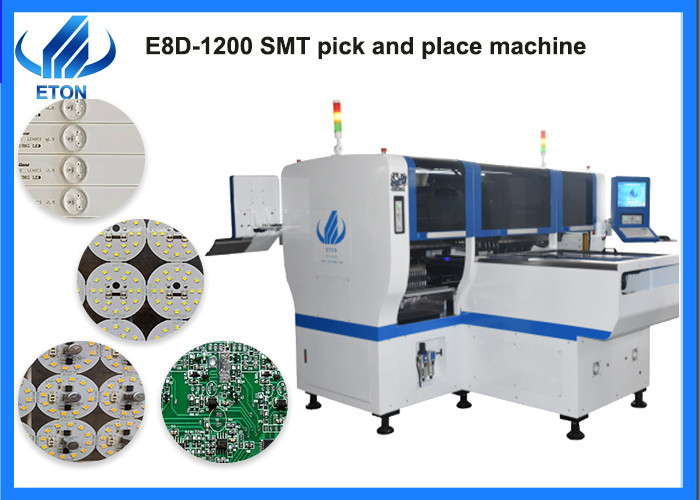

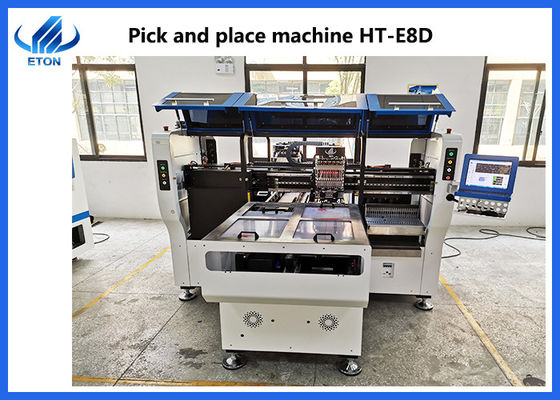

Multifunctional pick and place machine E8D-1200 taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
Features:
- Dual system, dual module multifunctional mounter to produce two different products at the same time.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:

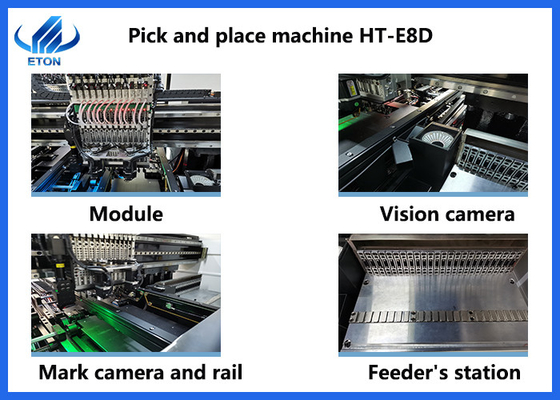

- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
Machine parameter
| Model |
HT-E8D-1200 |
| Dimension |
3150mm*2250mm*1650mm |
| Total weight |
2500kg |
| PCB length width |
Max:1200*300mm
Min:100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting speed |
90000CPH |
| No. of feeders station |
48PCS single module |
| No. of head |
24 PCS single module |
Company profile
SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
Was founded in 2011, an excellent company for SMT mounter machine, ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade. And have a 50000 square meters industrial park in Jiangxi province. Named as “China high-tech enterprise” “Shenzhen TOP Brand” and “Industry Special Contribution Award” etc.
Exhibition
Here are the exhibition that we attended from the previous period as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Packing and transportation
Our package of the machine is placed in the wooden boxes in a vacuum package , also the accessories of the feeders and other spare parts use cartons to equip with the wooden boxes with the machine.
Here is the procedure of our packing.
Service
FAQ
Q1. What is your merits of the machine to others production?
A1. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 50000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
Q2. If I need a perfect line of the machine can you supply?
A2. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q3. Whether have a free installment and training of operating the machine?
A3. Yes, our clients can enjoy a free installment and we will arrange our engineer to take a training for you, as for installation, commissioning and maintenance of the machine.
Q4. Could you supply a suitable production line for our products?
A4. Yes, as a professional manufacturer of SMT machine, if you get problem of production line we can support a whole line for your products.
Q5. How can I contact you to buy the goods in an efficient way?
A5. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
