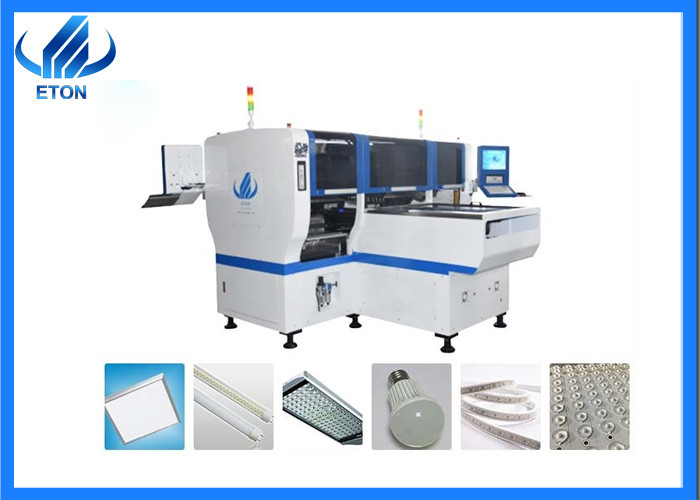

High efficiency led lights assembly line Full-automatic 24 head pick and place machine
1.product introduction:
(1) HT-E8D-1200:Double-module magnetic motor multifunctional pick and place machine.
(2) Dual system, dual module multifunctional mounter to produce two different products at the sane time.
(3) Mounting components: LED chip,capacitors,resistors,IC,shaped components,etc.
(4) Component: min.size 0402 max.height 15mm
(5) Application: Power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.
(6) Mounting speed reached 90000 CPH.
2.Machine technical parameter:
| Model |
HT-E8D-1200 |
| Dimension(L*W*H) |
3150*2250*1650mm |
| Weight |
2500kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.04mm |
| Mounting mode |
Group picking and separately placing, separately picking and separately placing |
| Mounting height |
<15mm |
| Mounting speed |
90000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
48 PCS |
| No. Of head |
24PCS |
3.Application: Power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.
4.Company profile:
Shenzhen ETON Automation Equipment Co.,Ltd.Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,
(1)Experience: It has more than ten years of research and development experience and LED industry service experience.
(2)Industrial park: With an industrial park of 50,000 square meters, focusing on the R&D and production of the SMT industry.
(3)We account for 80% customers market i thid field.
(4)Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.
5.Certificate of Honor:
We are high-tech enterprise, with CCC, SIRA, CE. and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise”etc.
6.Exhibition:
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including foreign exhibitions(except the epidemic period):India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc. Domestic exhibition: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition etc.
7.Packing:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
8.FAQ:
(1)What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery
(2)Does you company have a quality certificate for the machine?
Yes. Our corporation have CE,SIRA ,ISO awarded as well-know brand and many technology patents.
(3)Do you provide overseas after-sales services?
Yes.We can provide technical support abroad with you. We have offices overseas and have local engineers to help you solve the problems with the pick and place machine offline.
(4)What are the shipping methods, and how long?
Within 30 days.
(5)Is this machine difficult to operate?
No, not at all. 3 days is enough to learn to operate the machine .
