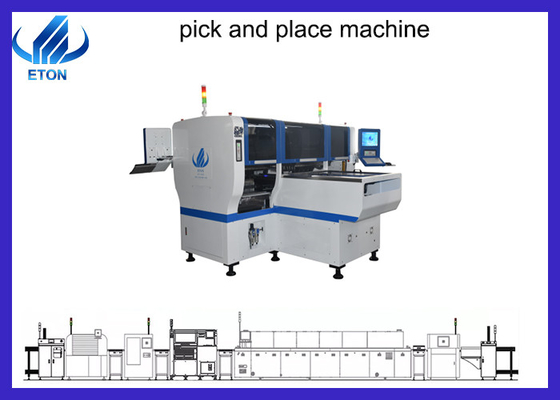

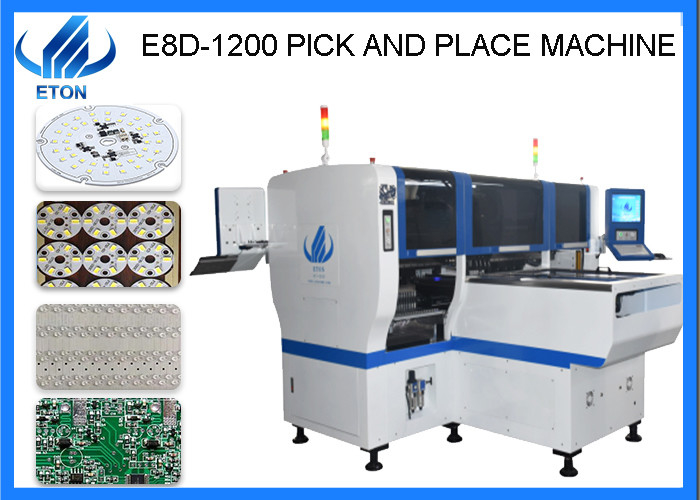

Double module mounting Led chip 90000cph multifuncational pick and place machine
Product description
Dimension:1950*2250*1650mm
PCB length width: max 1200*300mm min 100*100mm
Mounting mode: Group picking and separately placing, separately picking and separately placing
Vision system with 4 sets of camera, vision for the flight identification, Mark correction.
Components: LED chip, capacitors, resistors, IC, shaped components, etc.
Feature
Dual system, dual module multifunctional mounter to produce two different products at the same time.
Component: Min.size 0402 Max. Height 15mm
Application:Power drive, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Electronic feeder feeding system, non-stop material re-loading function
Machine parameter
| Dimension | 1950*2250*1650mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting speed | 90000cph |
| Components | LED chip, capacitors, resistors, IC, shaped components,etc |
| Power | 380AC 50HZ |
| Consumption power | 8kw |
| Feeding way | Electric feeder with double motor |
Application
Suitable for mounting LED chip, capacitors, resistors, lens, IC, shaped components,etc
Mounting products such as power drive, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Company profile

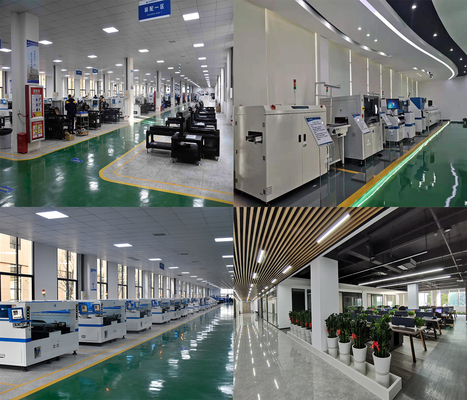

The company was established in 2011, the scale of the enterprise is 52 square meters. More than 300 employees, in Jiangxi has our own industrial park.
Certificate
Service
FAQ
Q: Is the software for these machine in English?
A: Yes. Our software is independently developed, there are two version in English and Chinese.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q: How can I buy this machine from you?(Very easy and flexible!)
A: Consult us about this product online or by e-mail.
B: Negotiate and confirm the final price,ship, payment methods and other terms.
C: Send you the proforma invoice and confirm your order.
D: Make the payment according to the method put on proforma invoice.
E: We prepare for your order in term of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F: Send your order by air or by sea.
Q: Why do you choose our product?
- our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
- Software lifetime free upgrade
- Free installation and training
- Provide 1-2 times a year free for machine repair, after the warranty period.
Q: Is the machine free of charge?
A: Yes. Our warranty for the whole machine is one year, but in addition, we provide customers with free maintenance once or twice a year.
