Product Details:
Payment & Shipping Terms:
|
| Dimention(mm): | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | 0.1-6mm (if＜0.6mm Need Jig) |
| Mounting Precision: | ±0.04mm | Mounting Speed: | 40000CPH |
| No.of.feeders System: | 32PCS | No.of .head: | 10PCS |
| Components: | LED Chip, Capacitors, Resistors, IC, Shaped Componets. Etc. | Feeding Way: | Electric Feeder With Double Motor. |
| High Light: | DOB Bulb LED Mounting Machine,10 Heads LED Mounting Machine,40000CPH Pcb Mounting Machine |
||

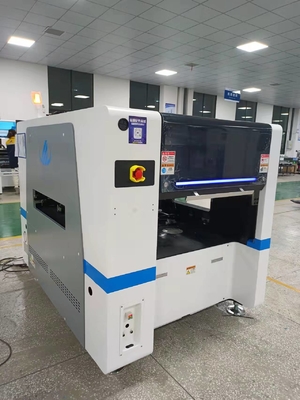

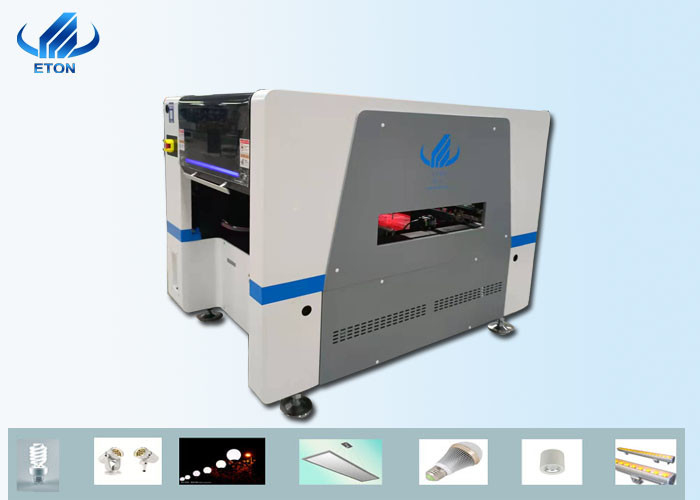

SMT multifuncational placement machine feature:
The structure of the multi-function placement machine mostly adopts the arch structure,
which has the characteristics of high precision and good flexibility.
Can accept all the material packaging methods, such as tape and reel, tube, box and reel.
In addition, when there are many materials in the tray, a multi-layer special tray feeder can be installed.

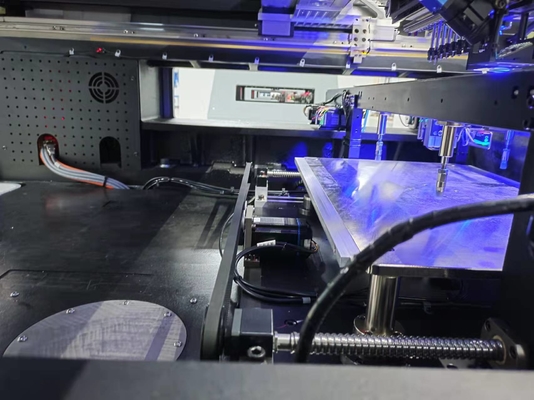

Most of the multi-function placement machines adopt the circuit board fixed type,
and use the movement of the placement head to achieve X and y positioning,
and will not cause large or heavy components to shift due to inertia due to the movement of the table.
One placement head one servo motor, pick components and place components have high speed and correct.
Identification of various complex components. inductors, capacity, terminals, resostors,diodes......
RGB components can mount, high precious. can mount 0402.
Feeder feeding system ,vision system, obtain exclusive patented techonology.
XYZ drive way by high-end magnetic linear motor and servo motor.
| Model | RT-1 |
| Mounting mode | Group picking and separately placing ;separately picking and separately placing |
| Total weight | 2000kg |
| No.of camera | 2PCS |
| PCB SIZE | 80*80-450*350mm |
| No.of head | 32PCS |
| Mounting speed | 40000CPH |
| No.of camera | 2PCS,vision alignment, mark correction |
Save the cost, RT-1 semi automatic SMT production line.
ETON is the leader manufacturer of SMT equipment in China with over 10 years experience.
Jiangxi Industrial Park, It has own industrial park,which has 7 building covering an area of more than square meters.
Got large more than 80% big led lighting industry market,
We have professional technicians from Japan, South Korea, the United States, Hong Kong, etc.
Our products are exported to more than20 countries.
|
Q: How to operate the mahine? A: We have online support, free training, local service (india, Egypt, Tunisa,etc). |
|
Q: I want to produce led display, does your machine suitable for produce this product? A: we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc
|
|
Q: What is this machine warranty ? And how about the after sales service? A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
|
|
Q: Does your machines have quality certificates? A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as Well-know brand" and many technology patents, |
|
Q: Choose which mode of transportation? A: Our modes of transportation are flexible, including water, land and air transportation.
|
