Product Details:
Payment & Shipping Terms:
|
| Mounting Speed: | 200000~250000cph | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Dimension: | 3100*2300*1550mm | Weight: | 1700kg |
| Feeder: | 68 | Head: | 68 |
| Power: | 380AC 50HZ | Warranty: | 1 Year |
| High Light: | Magnetic Linear SMT Mounting Equipment,Dual Arm SMT Mounting Equipment,18 Nozzles Pcb Mounting Machine |
||

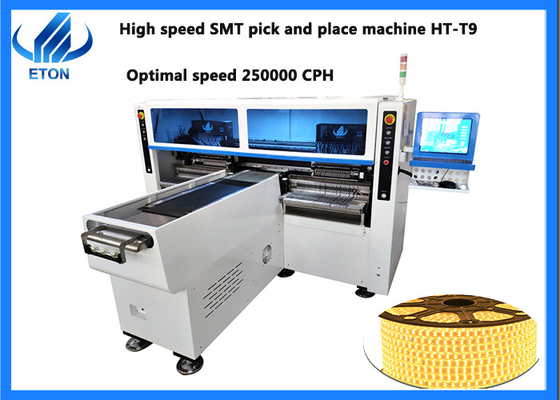

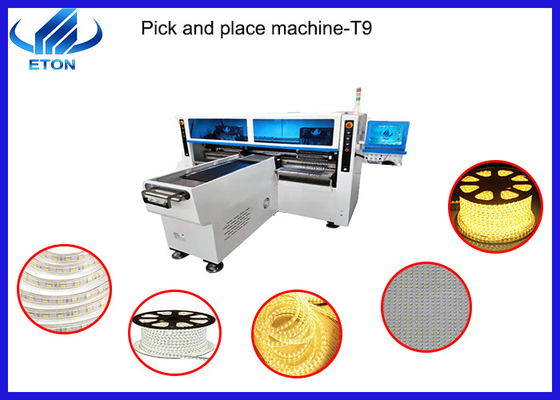

Dual arm four module 18 nozzles for each mounting part highspeed pick and place machine
Product description
Dimension: 3100*2300*1550mm
Total weight:1700kg
PCB length width: 250* any length
Mounting mode: Group to pick and group to mount
Mounting speed: 200000~250000cph
Components: LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers, etc.
Feature
Dual arm magnetic linear highspeed mounter for flexible strip( no wire),producing 4 types materials at the same time capacity reach 250000CPH
Dual arm four module, 18 nozzles for each mounting part, part A or part B can be mounted separately or synchronously
Calibration automatically, high precision, available for RGB
Exclusive patent technology: Group to pick and group to mount
Machine parameter
| Dimension | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| Mounting speed | 200000~250000cph |
| Mounting height | ≤5mm |
| Feeder | 68pcs |
| Head | 68pcs |
| Power consumption | 6KW |
Application
components: LED 3014/3020/3528/5050, capacitors, resistors, bridge rectifiers,etc.
Company profile
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting, LED display, electronics field, power drive, home appliances, new energy and other industries.
Honours client
Our products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Package and transportation
packing way: vacuum package, wooden case
transportation mode: sea transport, land transport, air transport, according to customer needs
FAQ
Q: Why do you choose our product?
Q: if there is a problem with the machine,can it be repaired?
A:Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q: Is hard to use these machines?
A: No, not at all. All our machine are automatic, you just type in the program and it will work. The operation is relatively simple and I believed that certainly learn in two days.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
Q:Do you have offices and local engineers in overseas?
A:Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
